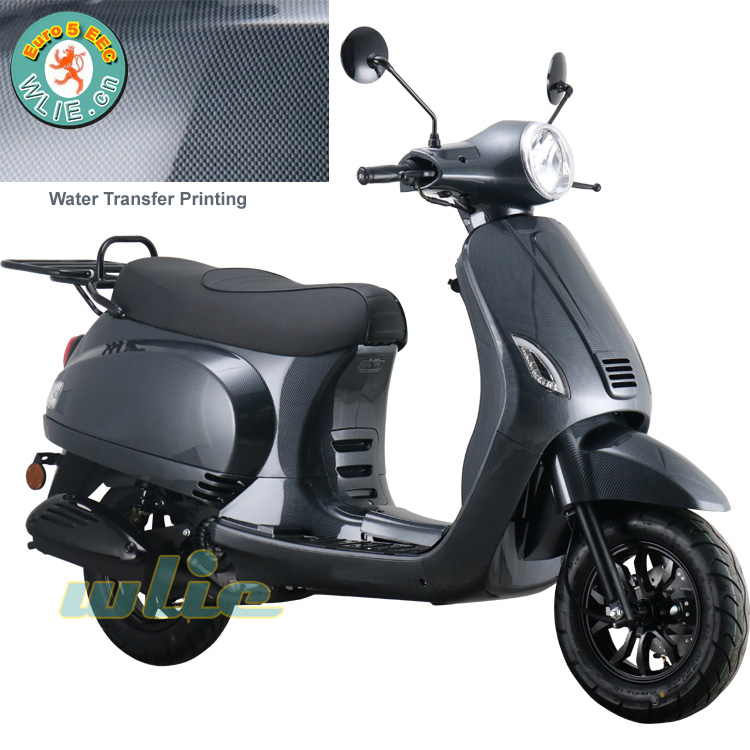

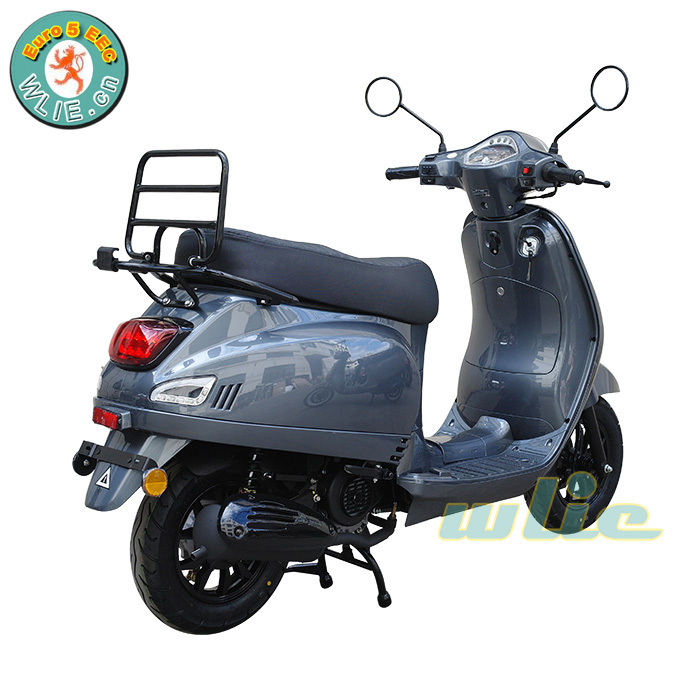

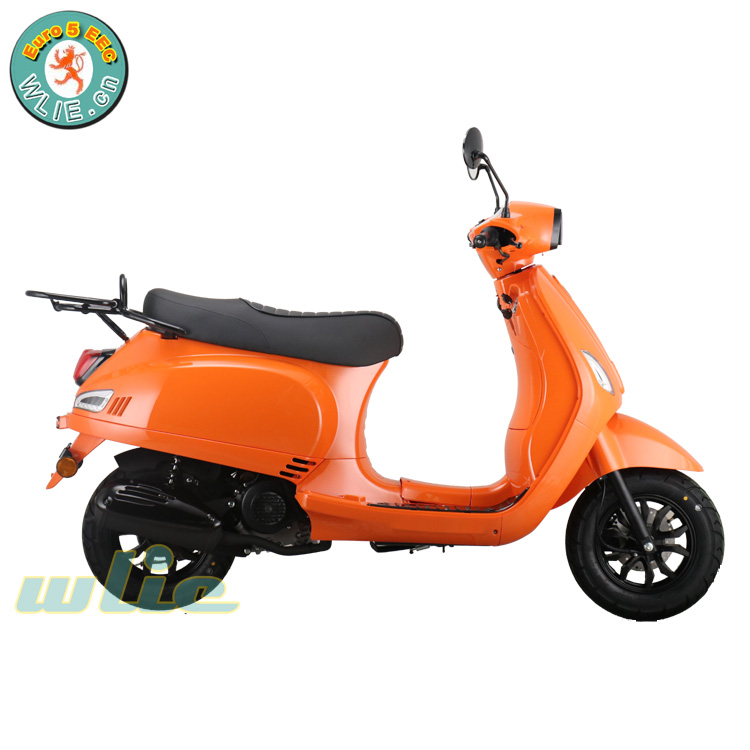

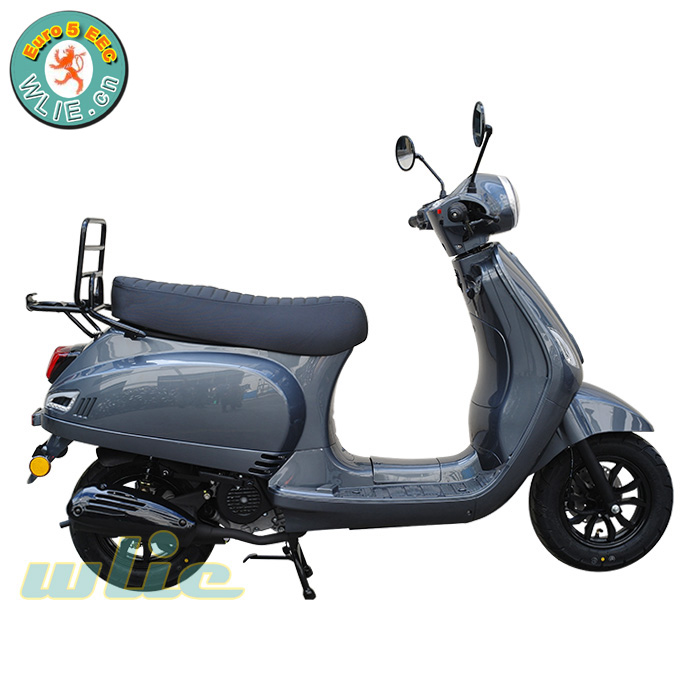

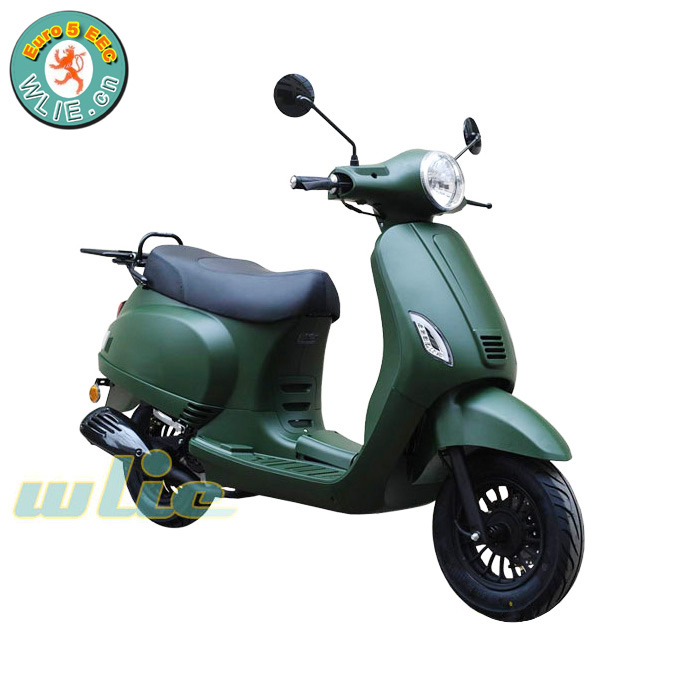

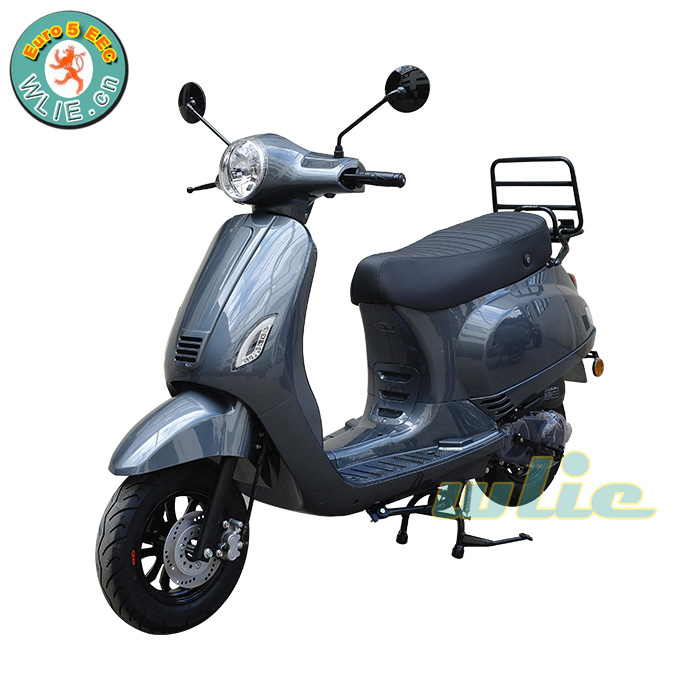

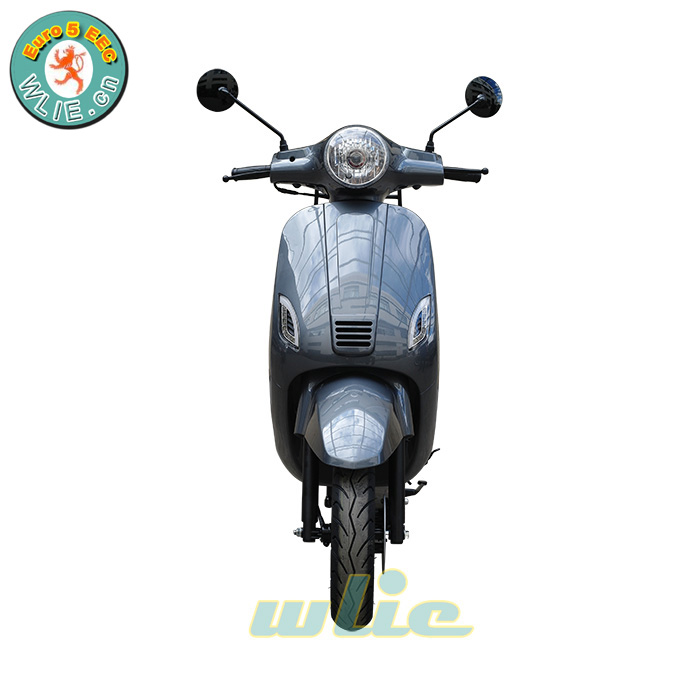

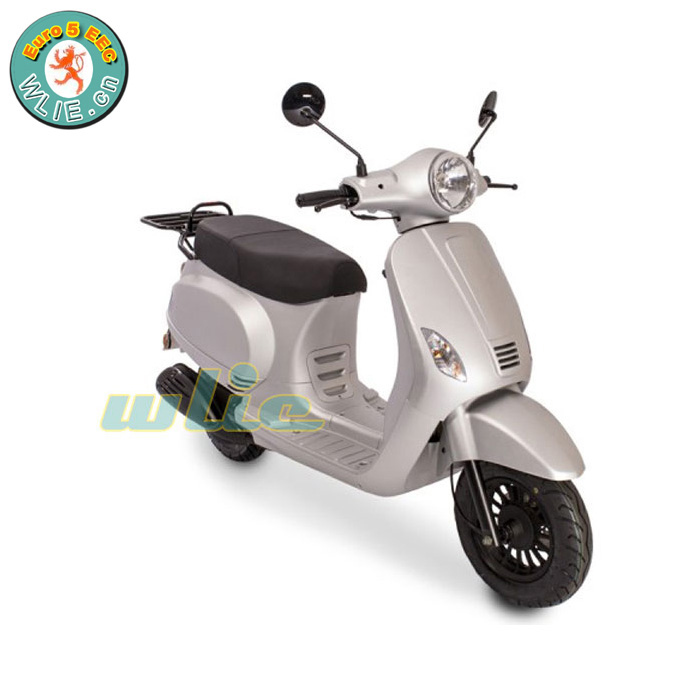

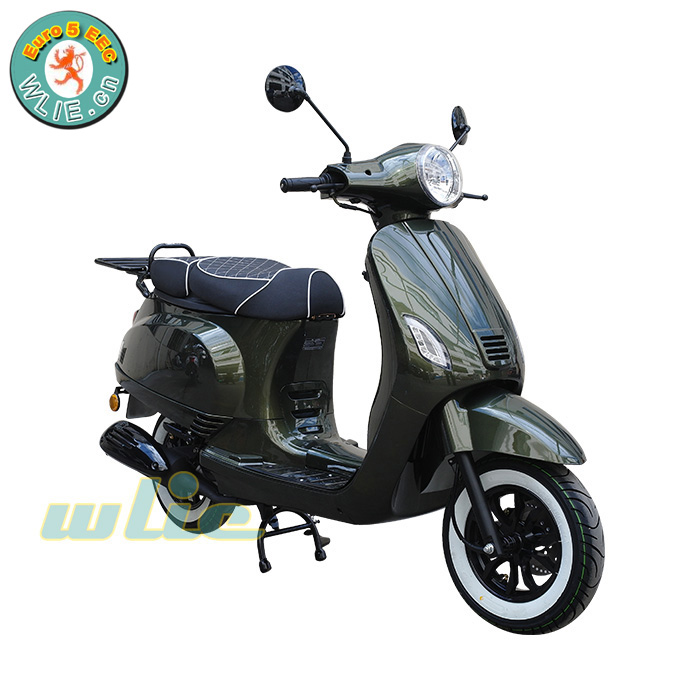

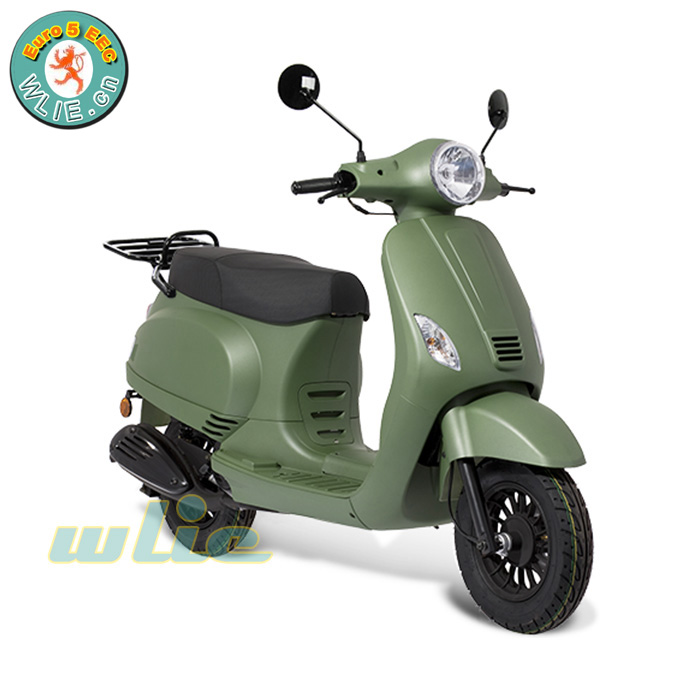

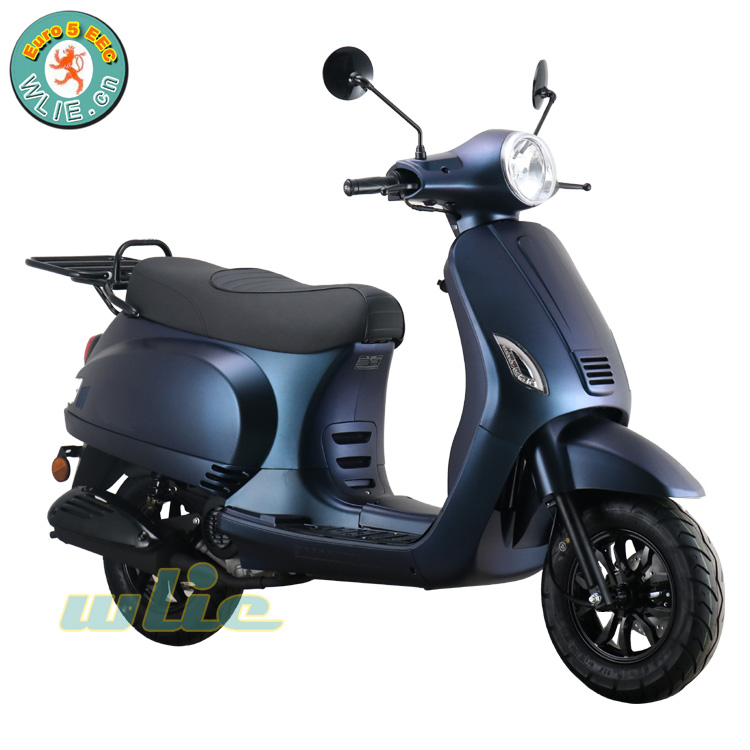

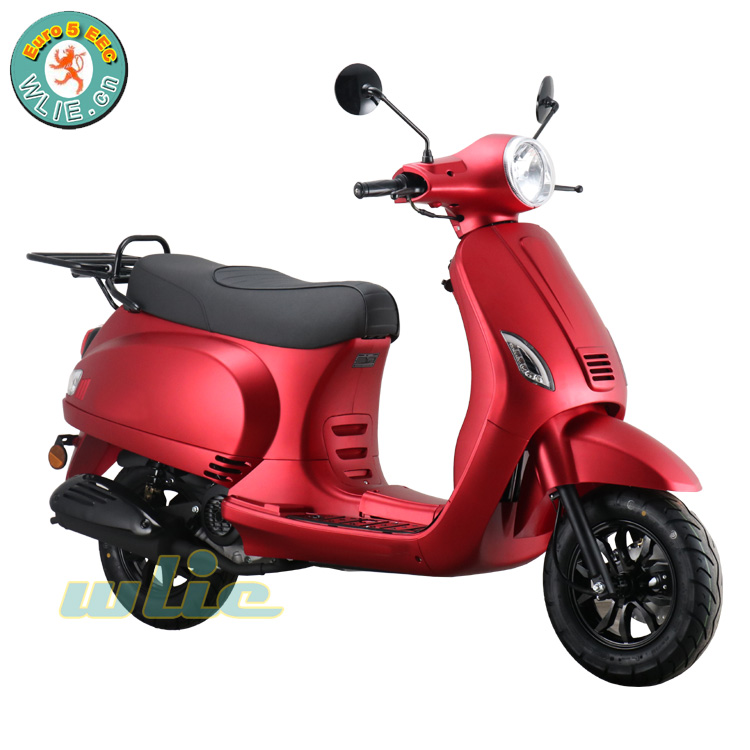

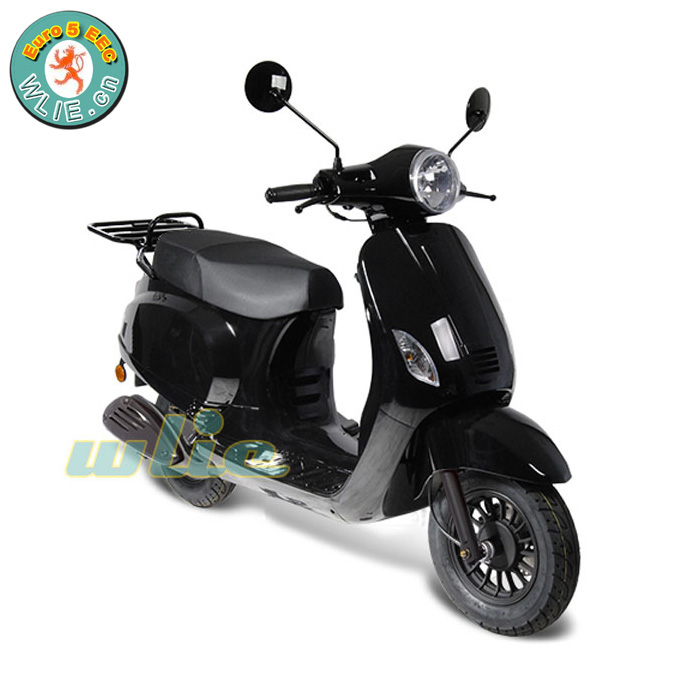

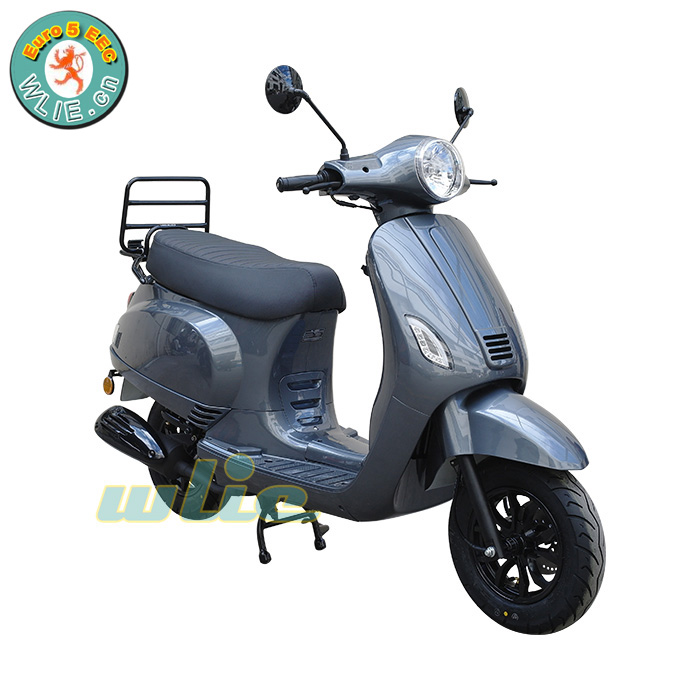

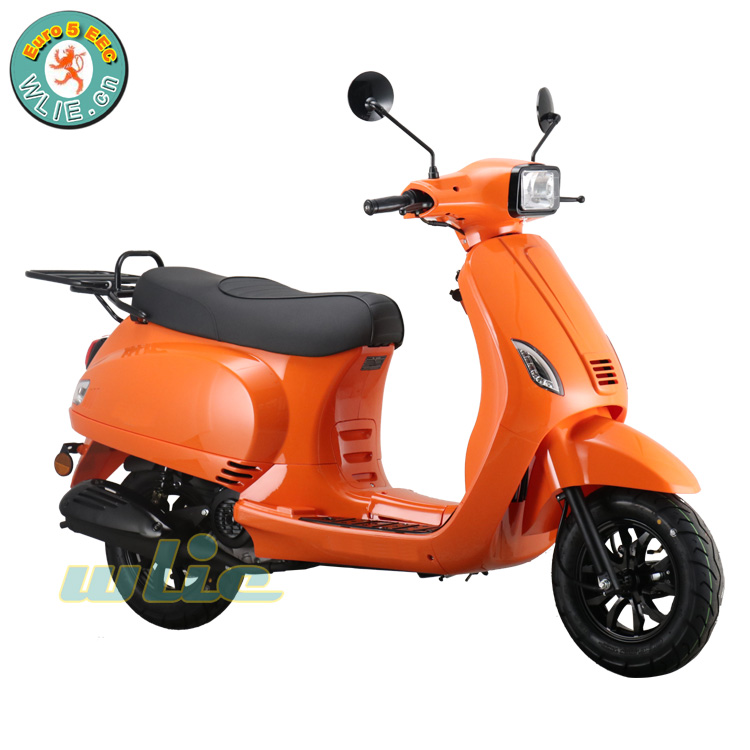

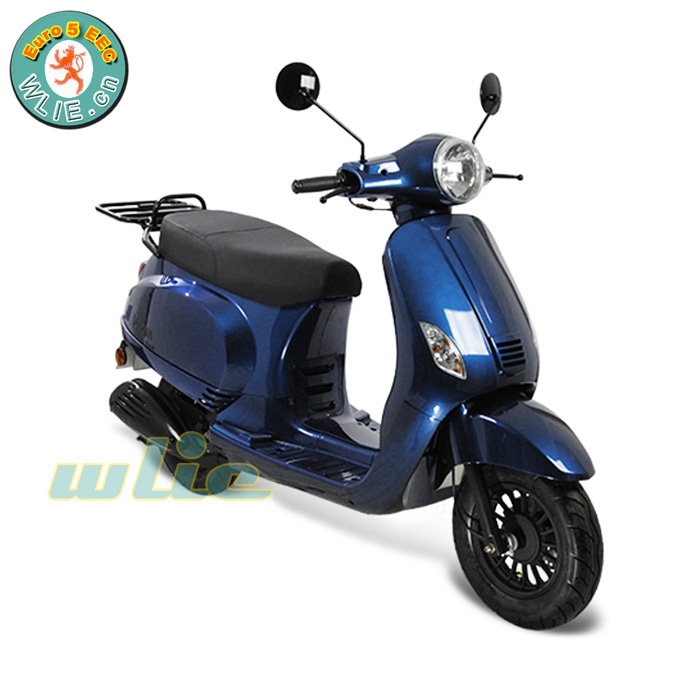

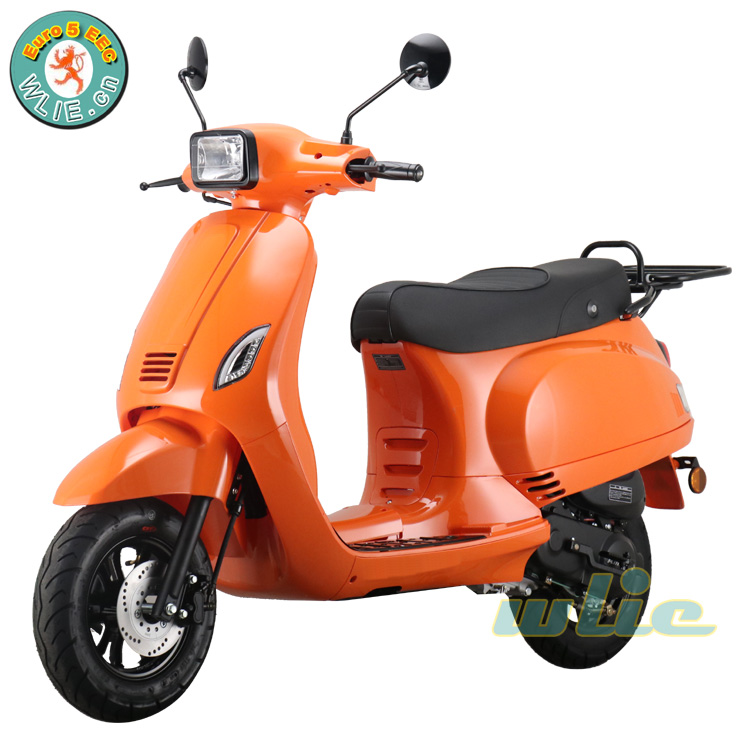

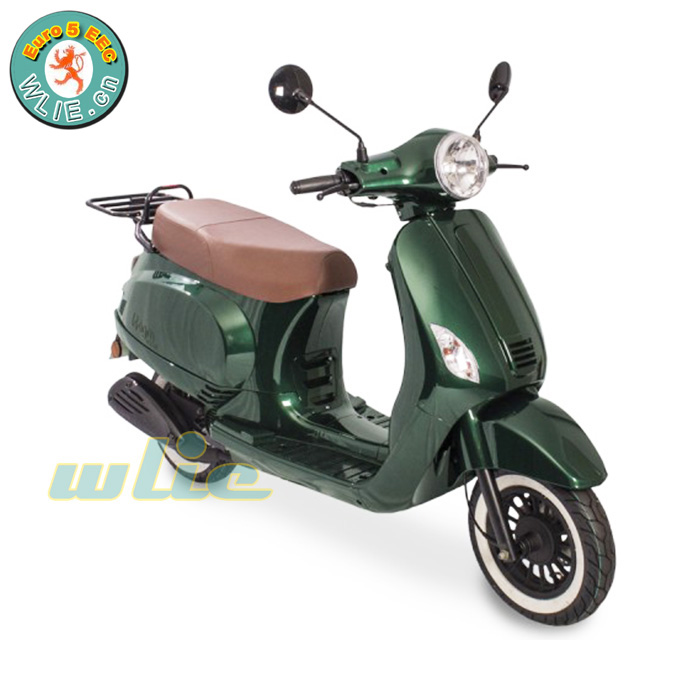

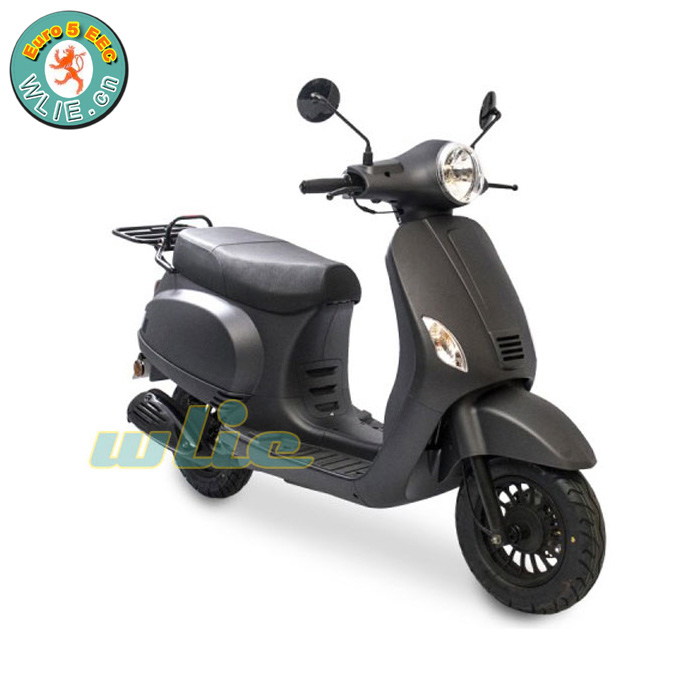

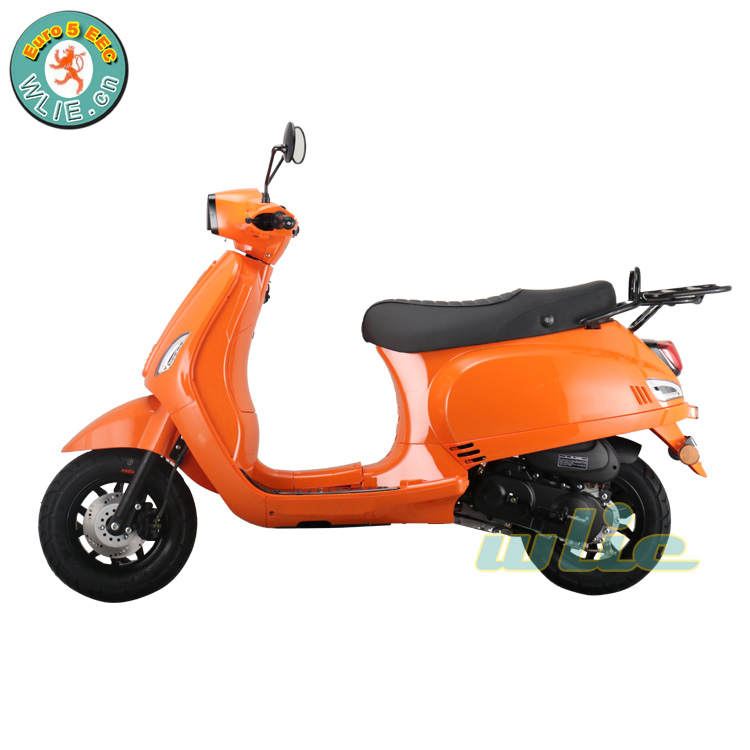

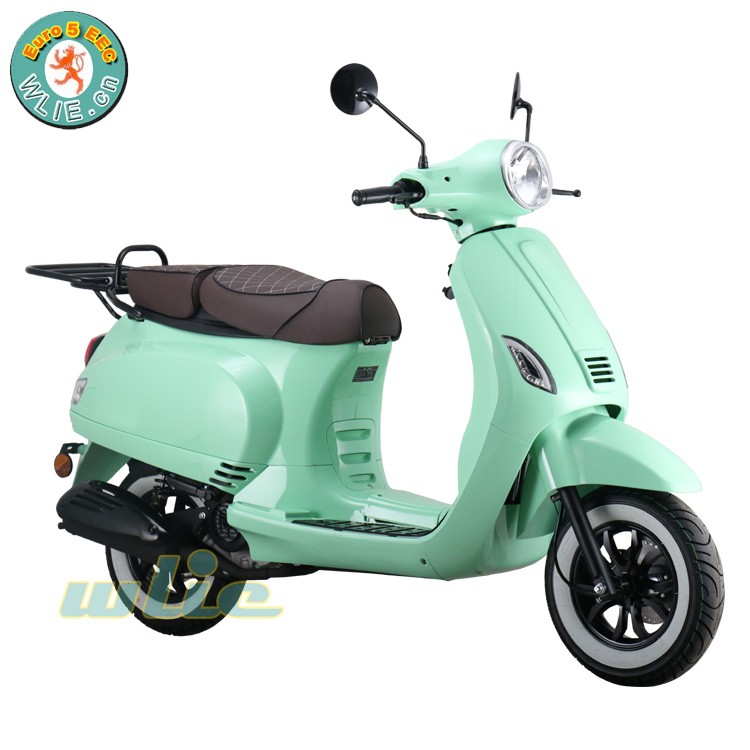

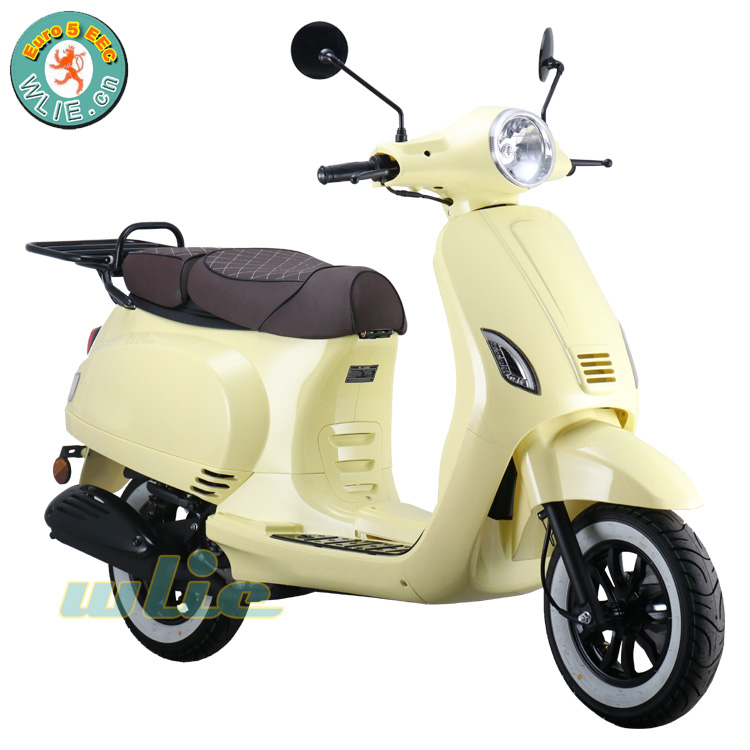

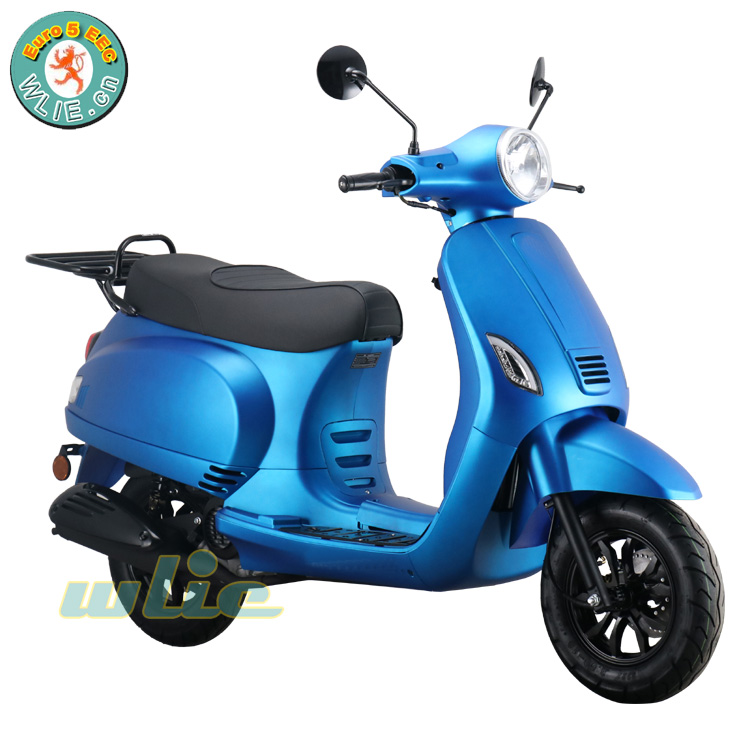

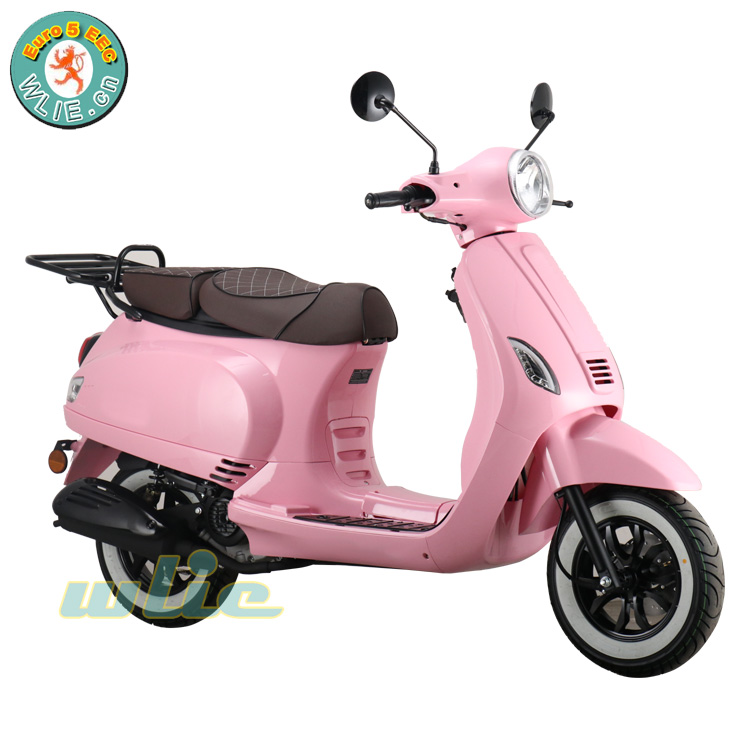

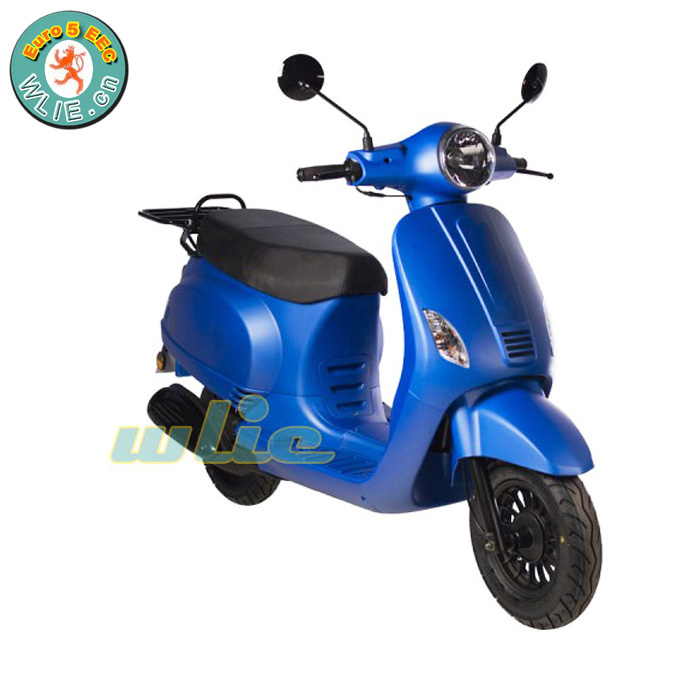

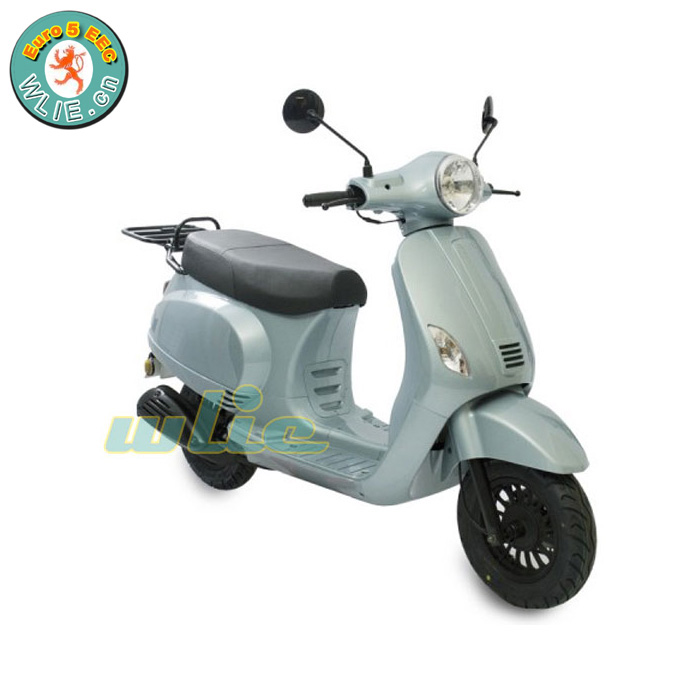

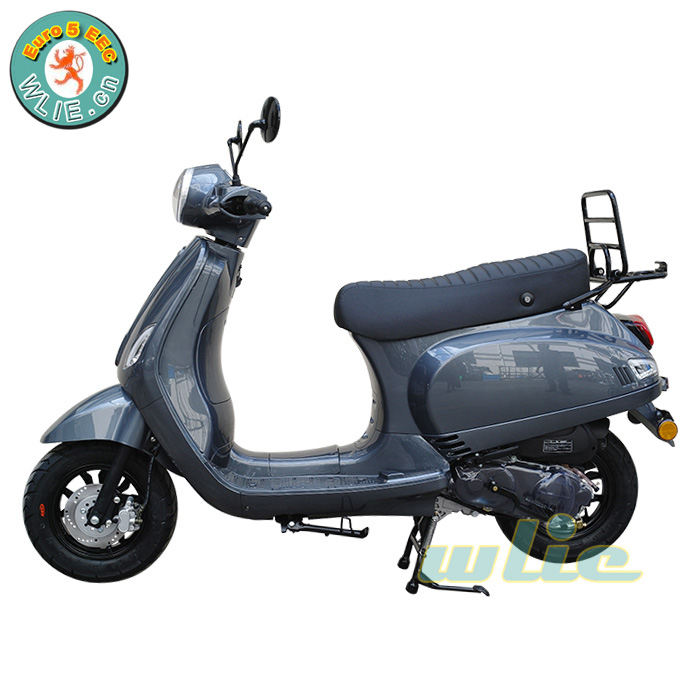

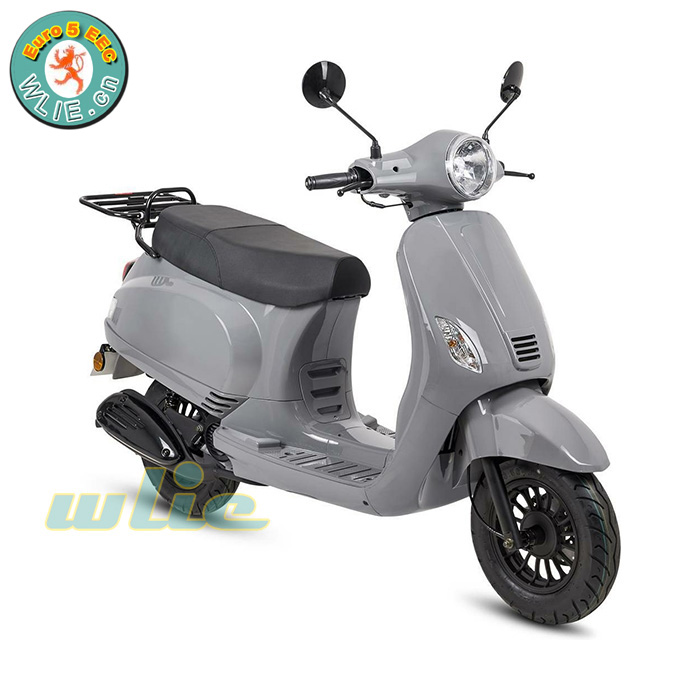

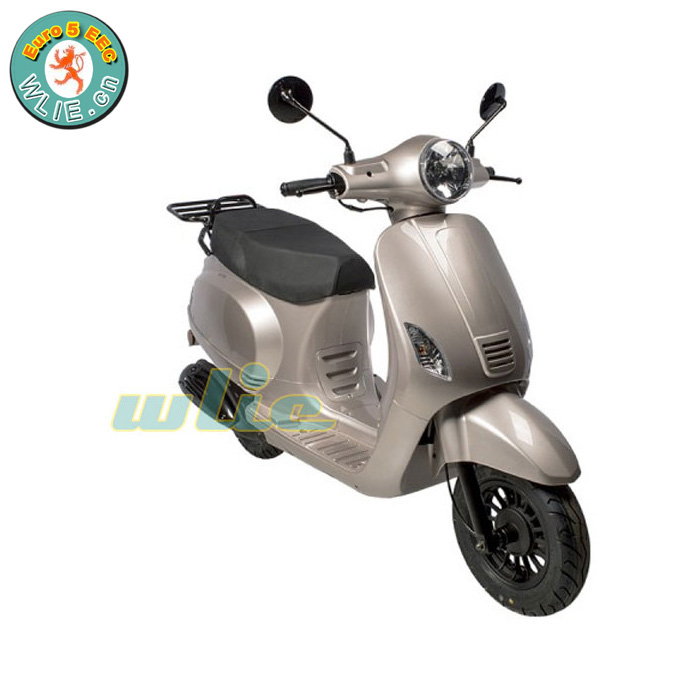

Maple 50 (Euro 5+) Inquiry

Specifications

With EFI system, Euro 5+ EEC Homologated

Specification
Drive system	Belt drive
Front and rear shock	Front hydraulic rear spring shock
Electric and speedmeter	Eight level direct current , 12V7A battery,speedmeter(speed,mileage,fuel tank capacity)

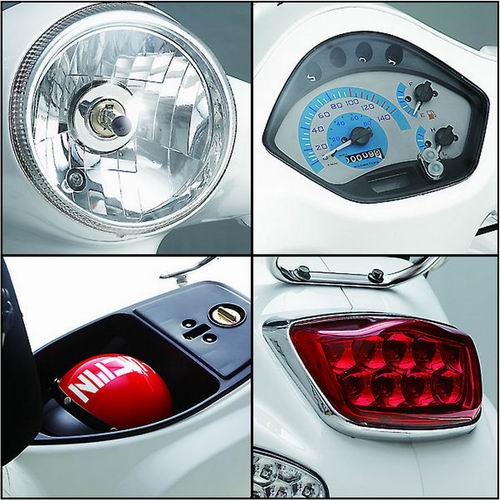

Lighting system	Front headlamp,front and rear winker,rear tail light
Exhaust system	Mute exhaust
Switch control system	Function left and right swtich
Cylinder diameter	39mm
Piston stroke	41.4
Battery type	12V7A
Max power and rotate speed	2.2KW(3.0HP)/7500rpm
Max torque and rotate speed	3.01/5000(N.m/rpm)
Minimum ground clearance(mm)	95
Compression ratio	10.2:1
Unladen mass(kg)	93
Load capacity(kg)	150
Economic oil consumption	≤2.0
Climbing capacity	Angle: 30 degrees
Minimum turning radius	1750MM
Speed change	V type belt stepless speed change

1. Selling Points of the product:

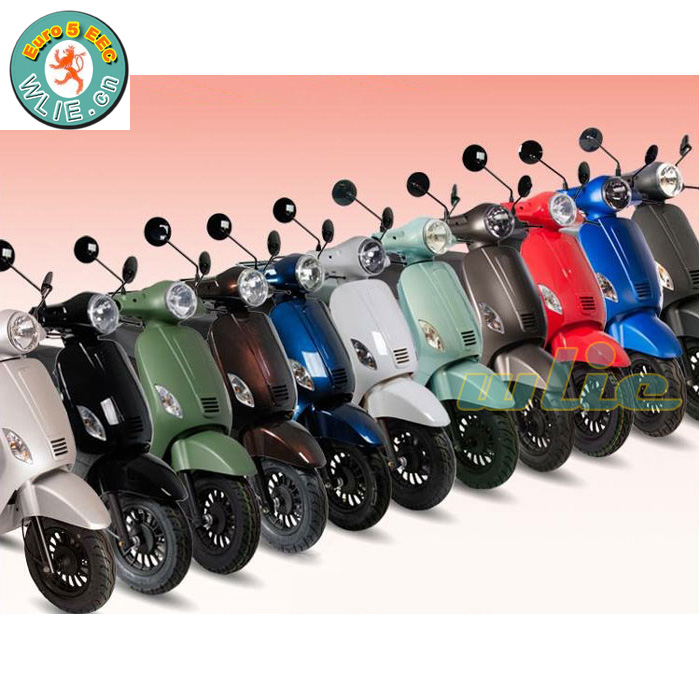

1,It can match multicolor and stickers
2,We can do 125CC power, also do we can do 50CC and 150CC models.
3,Front and rear vacuum tire :durable,fasten, balanced ,and beautiful. the tire is wear-resisting and aiti-explosion.
4,Disc brake has high safety performance and has no noise

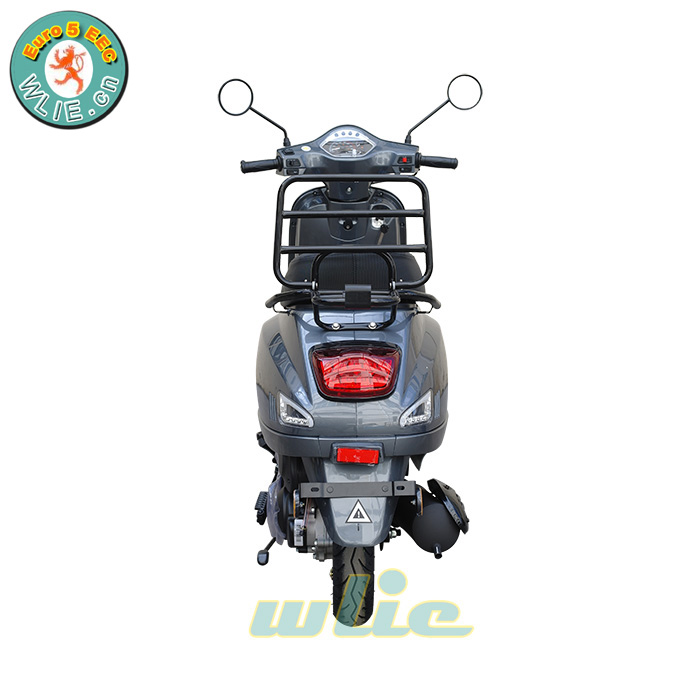

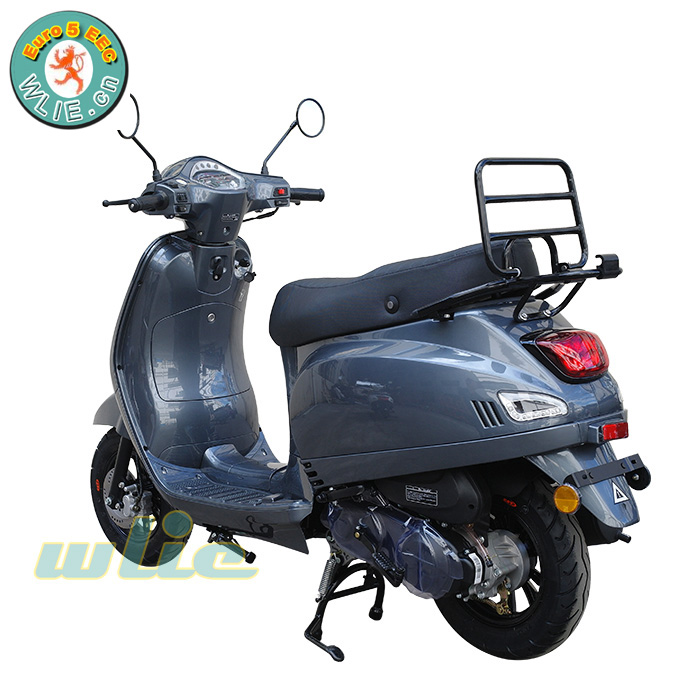

5,The motorcycle can install rear box and rear carrier

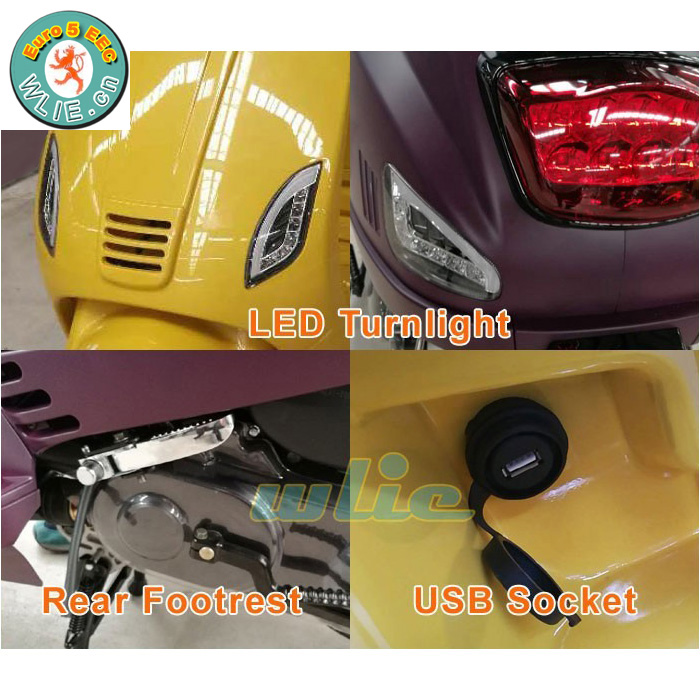

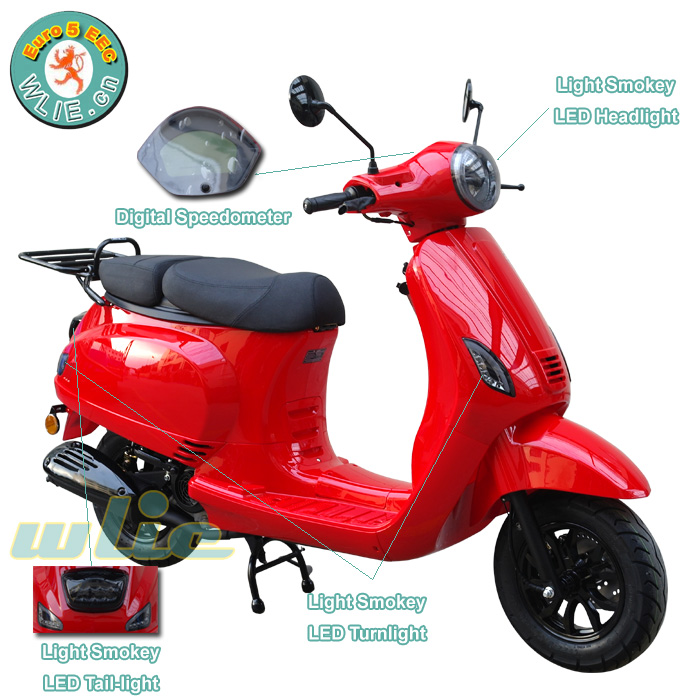

2. LED Turnlights version:

1,with LED turnlights
2,with rear footrest
3,with USB socket
