| Maple 125 (Euro 5) Inquiry |
Specifications
With EFI system, Euro 5 EEC Homologated
| Displacement(ml) | 124.6 |
| Engine NO. | 152QMB |
| Motorcycle body material | ABS, PP |
| Max speed(km/h) | 80 |
| Fuel tank capacity(L) | 5.5 |
| Tyre size | 3.50-10 |
| Brake Mode | Disc/drum |
| Dimensions (length*width*height) (mm) | 1820*685*1135 |
| Engine type | single cylinder,4 stroke |
| Cylinder diameter(mm) | 52.4 |
| Piston stroke | 57.8 |
| Battery type | 12V7A |
| Max power and rotate speed | 6.0kw(3.00HP)/7500r/min |
| Max torque and rotate speed | 8.4N.m/6500r/min |
| Minimum ground clearance(mm) | 95 |
| Compression ratio | 9.2:1 |
| Unladen mas(kg) | 93 |
| Load capacity(kg) | 150 |
| Economic oil consumption | ≤2.8 |
| Climbing capacity | Angle: 17 degrees |
| Minimum turning radius(mm) | 1305 |
Selling Points of the product:
1,It can match multicolor and stickers.
2,We can do 125CC power, also do we can do 50CC and 150CC models.
3,Front and rear vacuum tire :durable,fasten, balanced ,and beautiful. the tire is wear-resisting and aiti-explosion.
4,Disc brake has high safety performance and has no noise.
5,The motorcycle can install rear box and rear carrier.

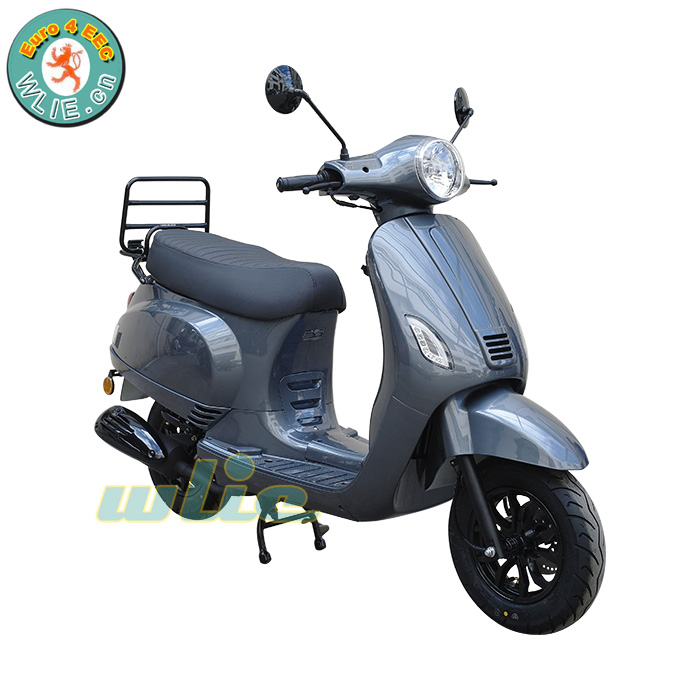

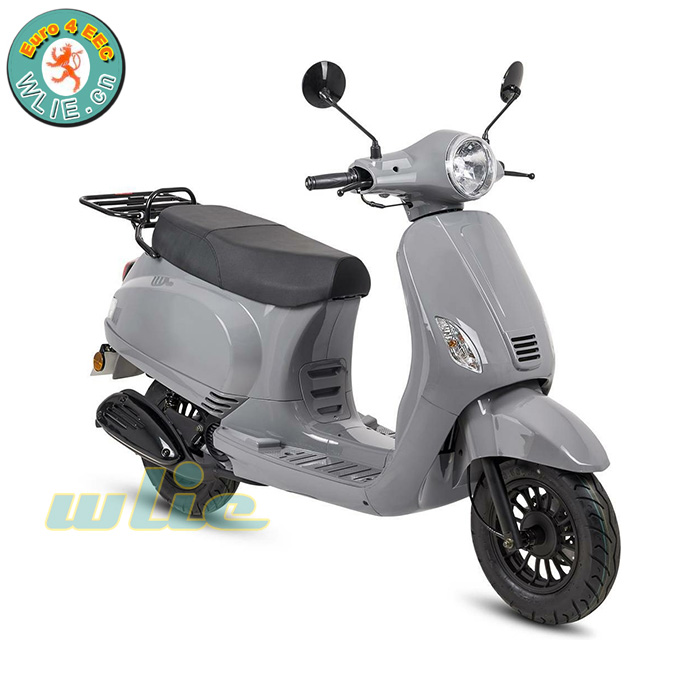

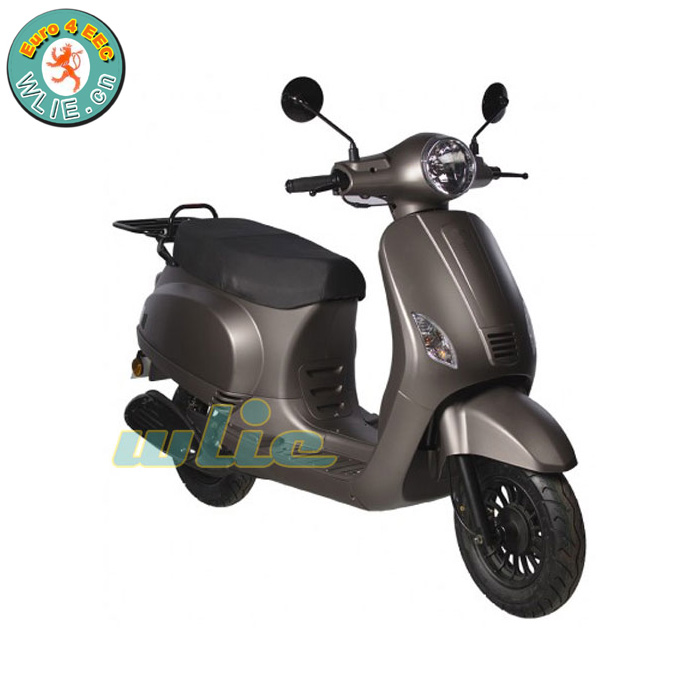

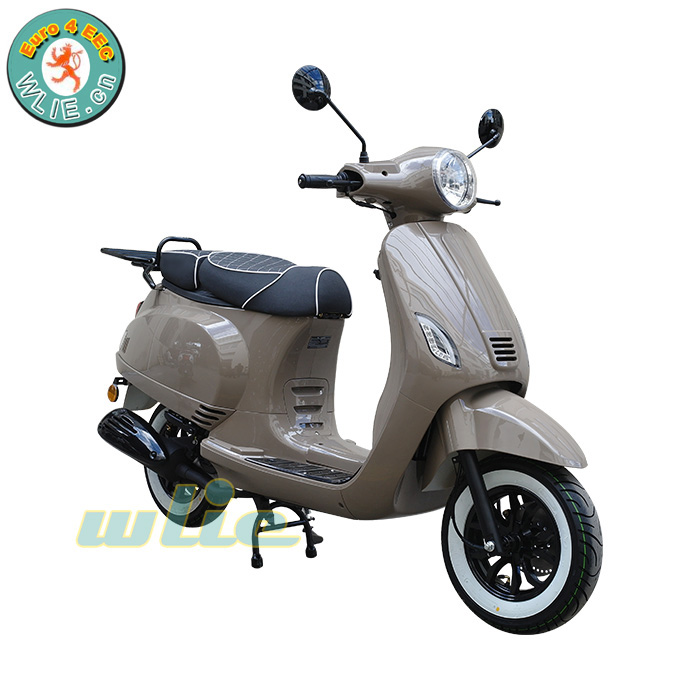

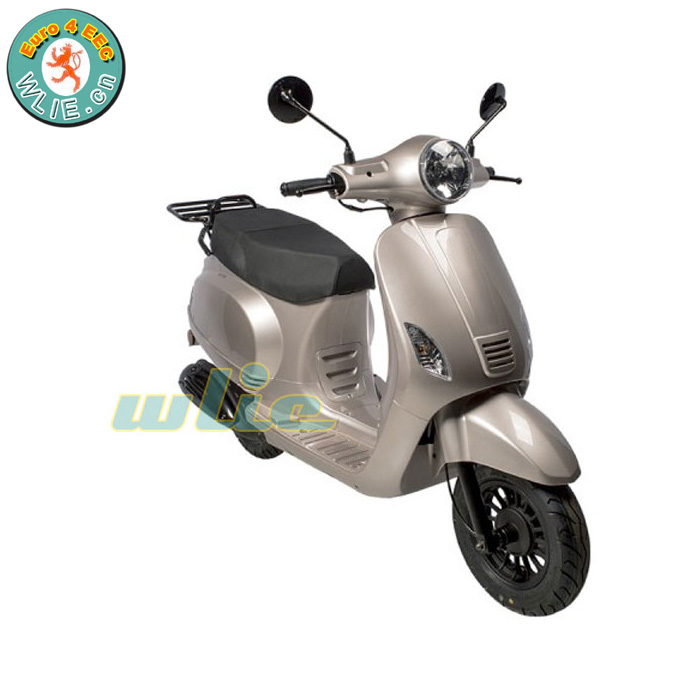

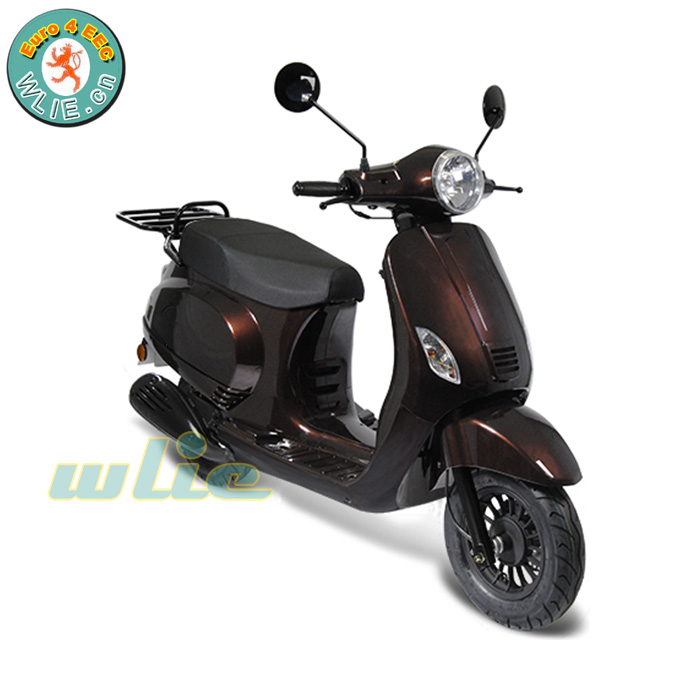

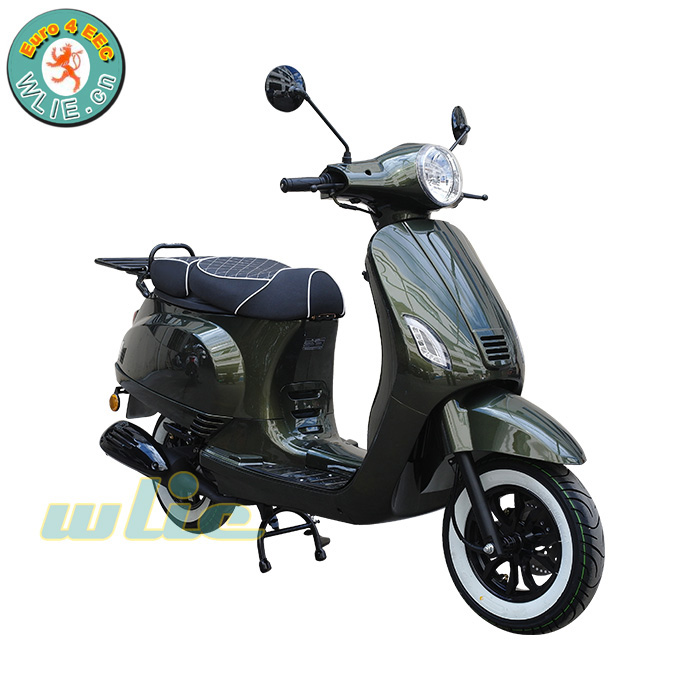

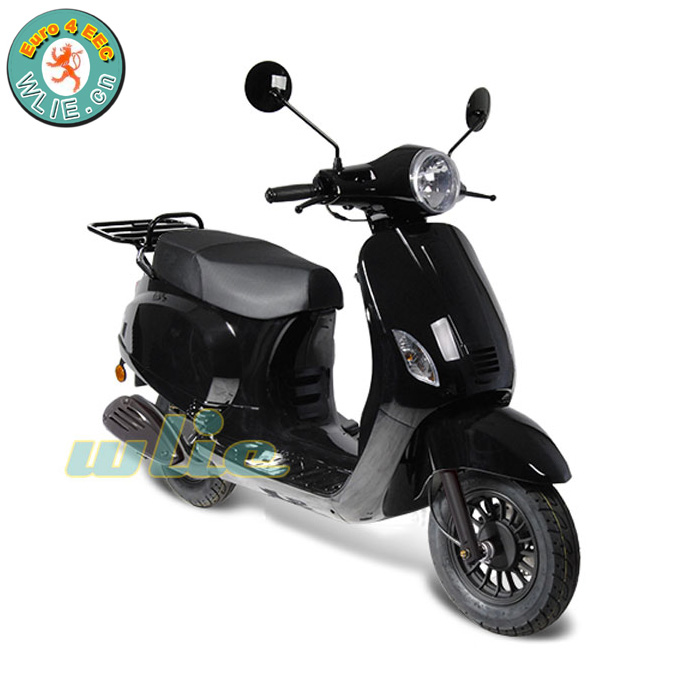

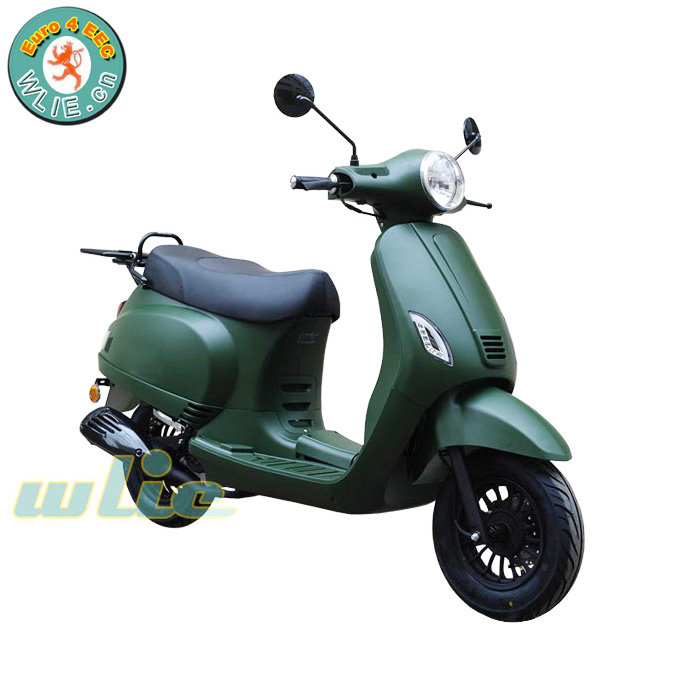

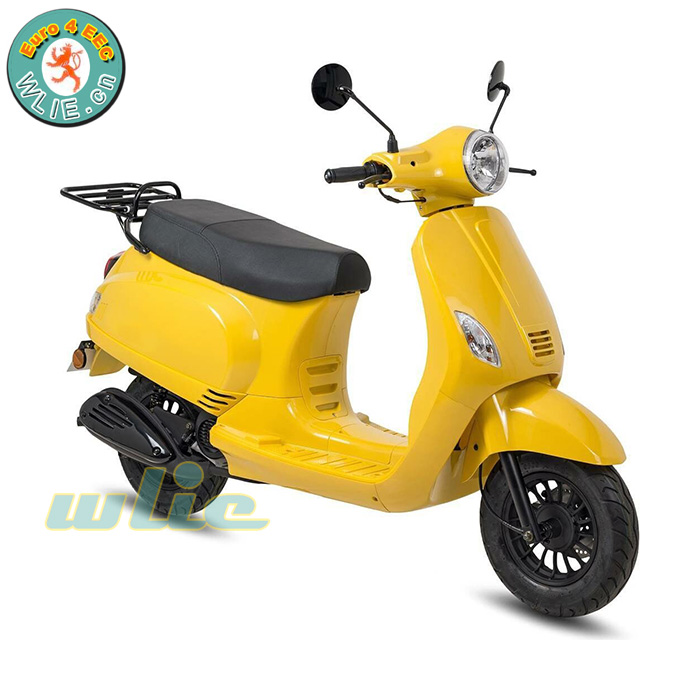

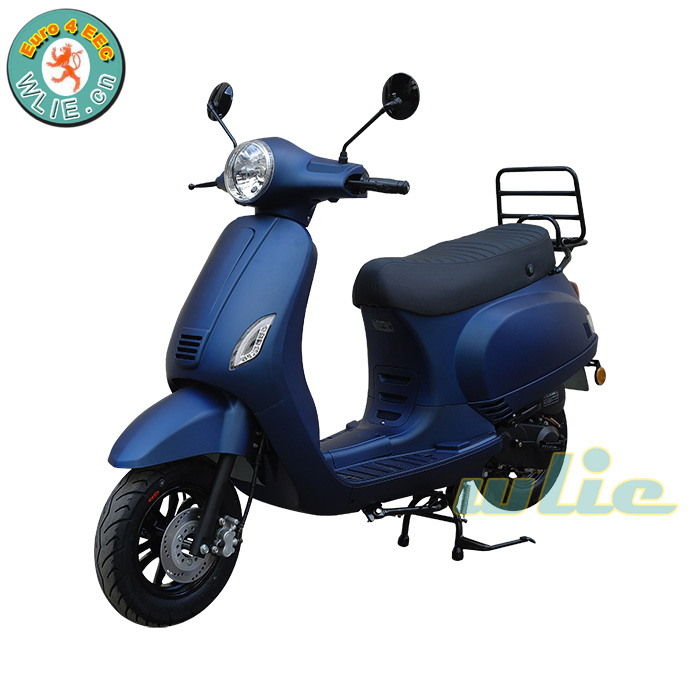

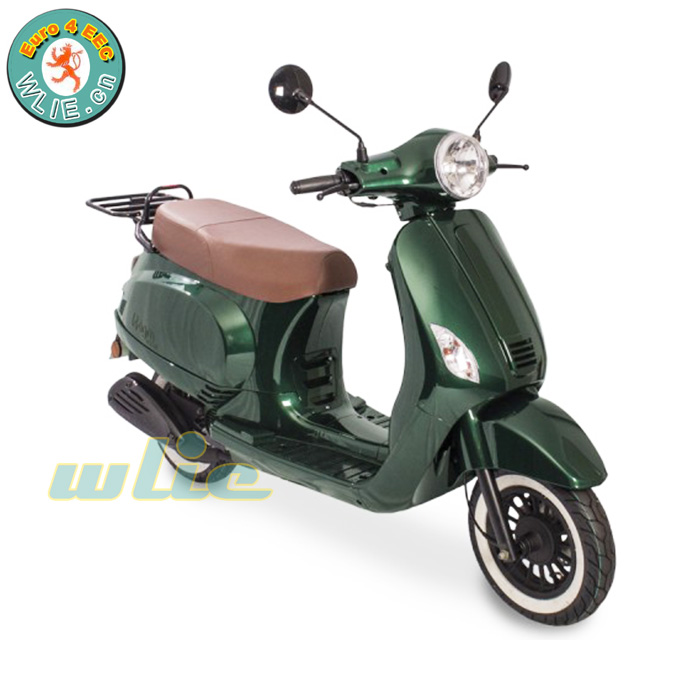

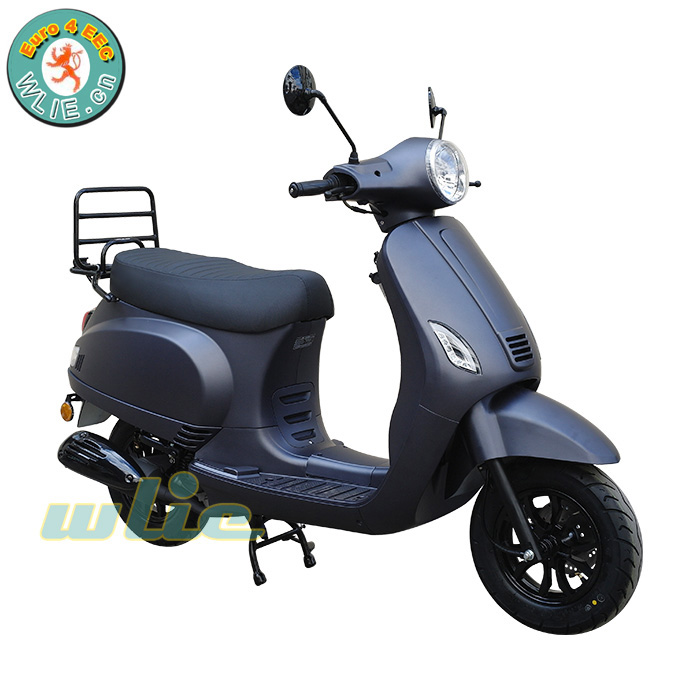

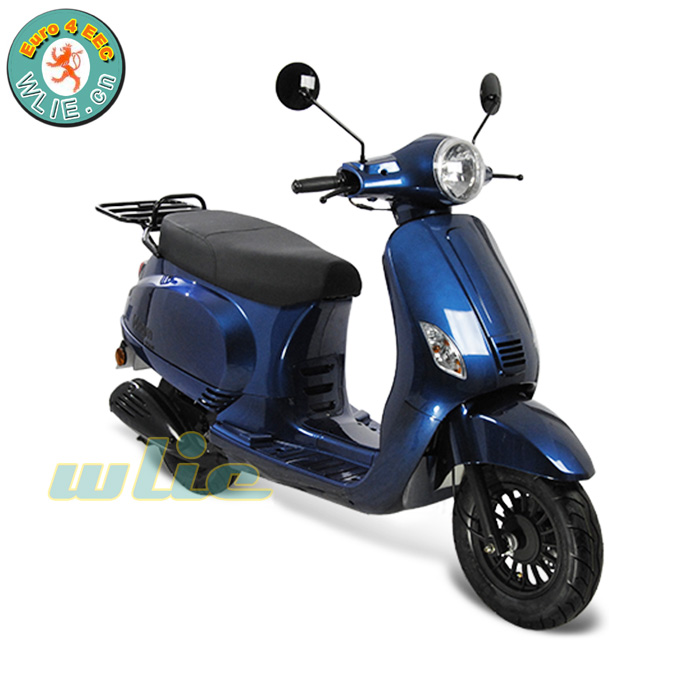

Color sample of the product
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
| |

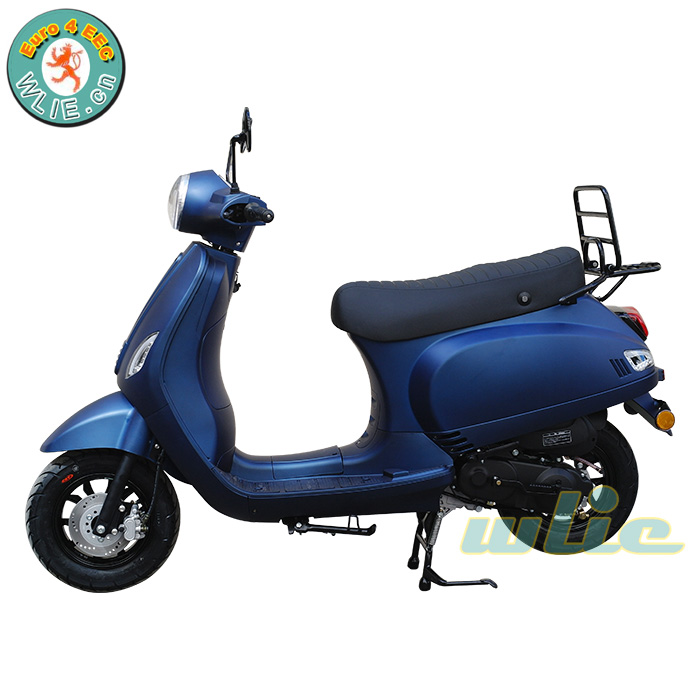

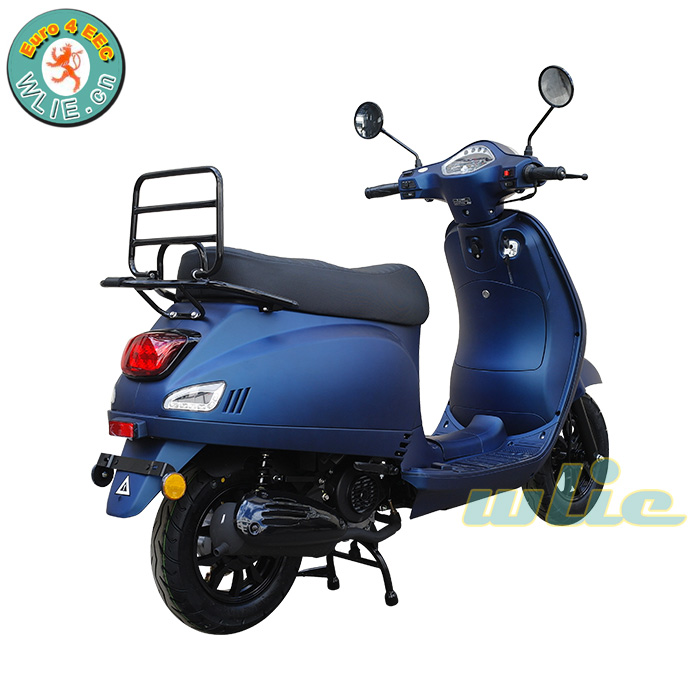

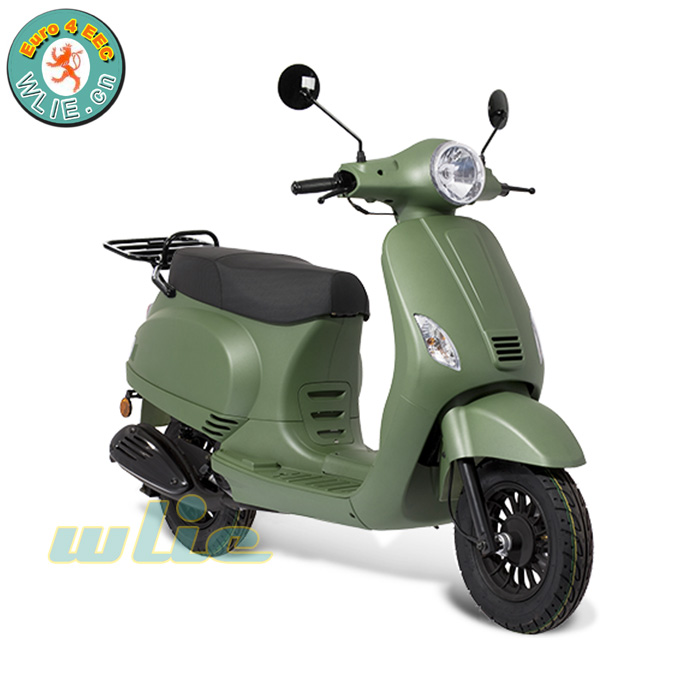

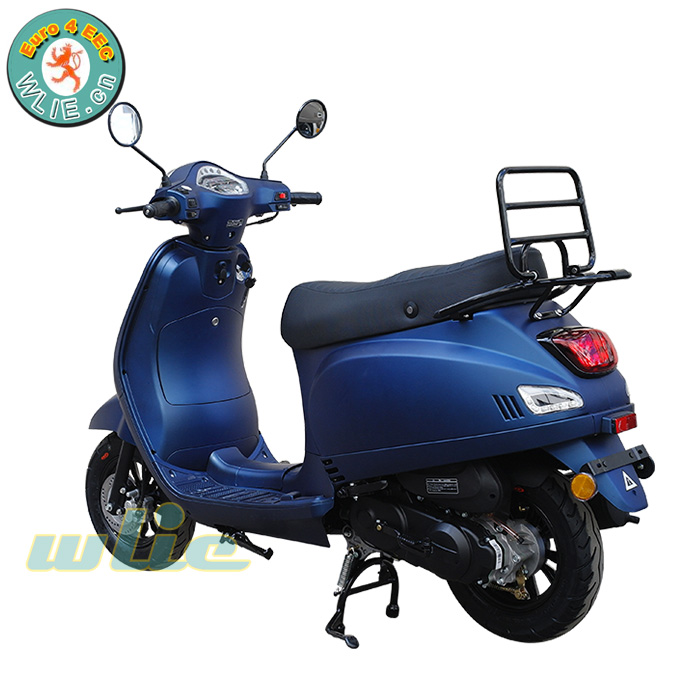

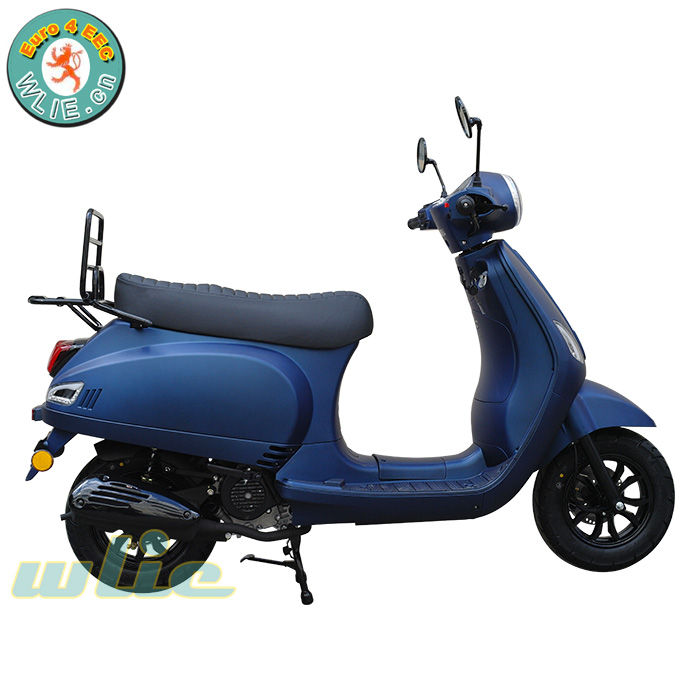

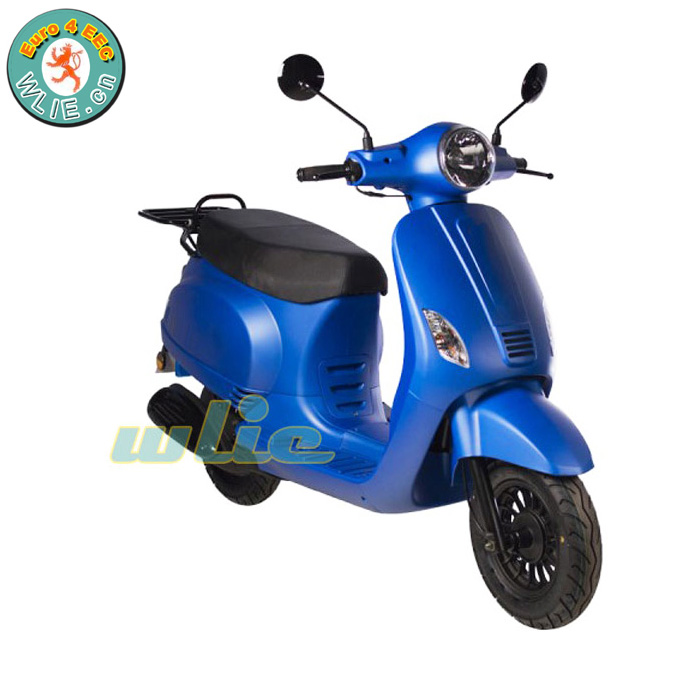

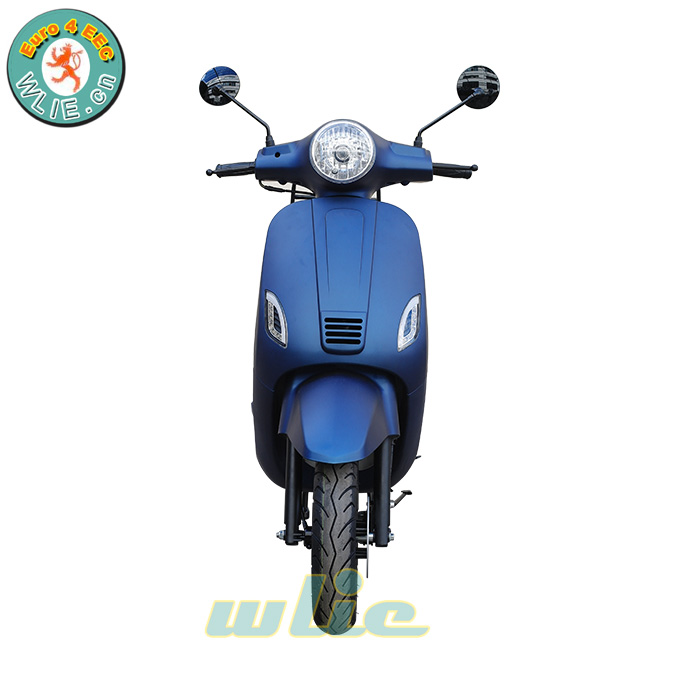

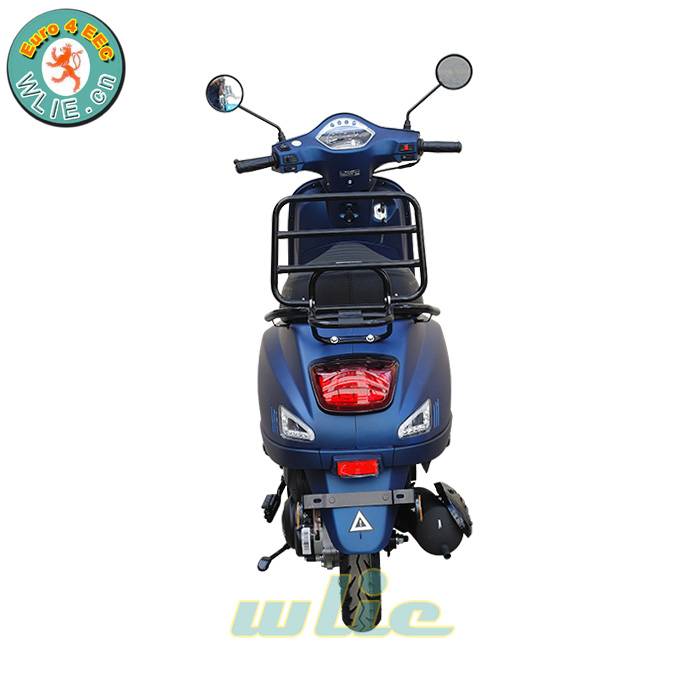

Multi-angle pictures of the product
 |
 |
 |
 |
 |
 |
 |
Detail photos of the product

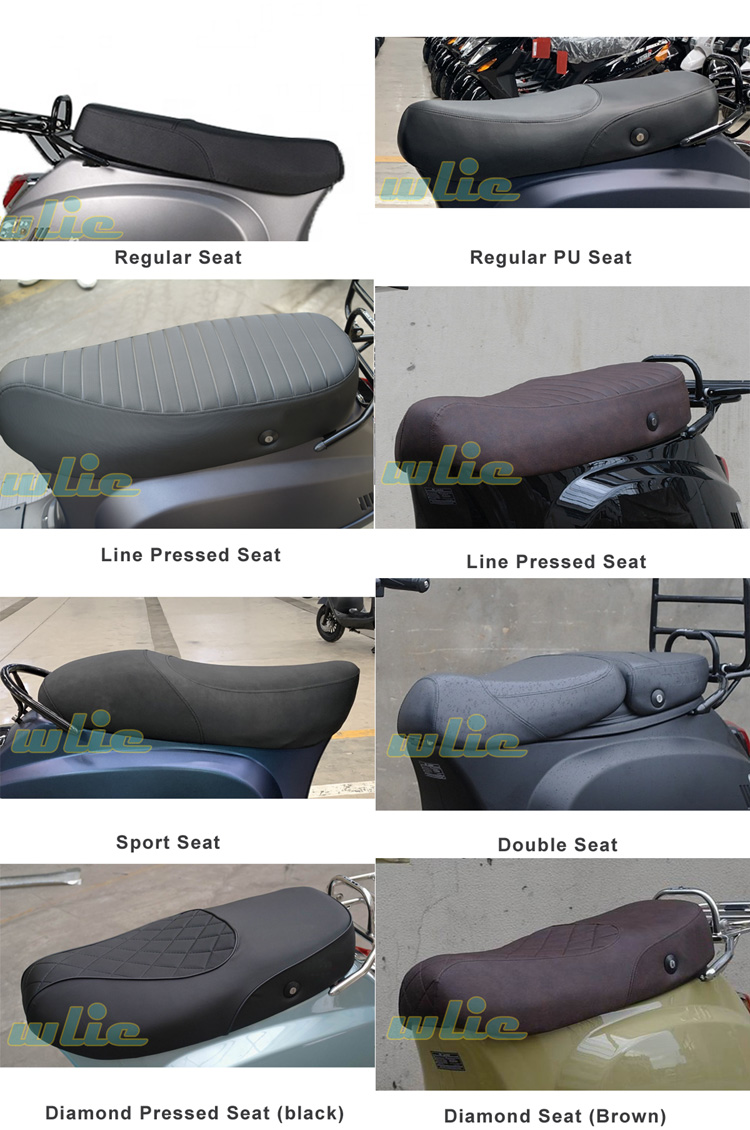

Seat choices:
Certificate
Accessories for Maple
