CK Plus 125cc (Euro 5+) Inquiry
F66 50cc (Euro 5)

ModelCK PLUS 125
Engine1 cylinder, 4 stroke
Compression Ratio9.2:1
Coolingair cooling
SparkPlugD8RTC
Displacement124 cc
Cylinder diameter & Stroke(MM)56.5×49.5
Top Speed(km/hr)92 km/h
Power(HP/RPM)7.2KW/8500±127r/min
Torque (NM/RPM)8.6N.m/7000±105r/min
Starting SystemElectric/foot
IgnitionECU
GearboxInternational 5 gear
Drive modeChain Drive
Fuel consumption46.0 km/L
Fuel Tank Capacity(Liters)10.5
Oil Capacity1.0 L
Total Length(MM)1945 mm
Total Width(MM)740 mm
Total Height(MM)1170 mm
Seat Height(MM)825 mm
Wheel Base(MM)1335mm
Front SuspensionUpside Down
Rear SuspensionMiddle single shock absorber
Max. Loading Weight(KG)155
Front BrakeDisc(CBS)
Rear BrakeDisc(CBS)
Front Wheel110/70-17
Rear Wheel140/60-17
Time from 0-100km(h)12.8
Constant-speed Fuel Economy2.1L/100KM



Selling Points of the product

1. Euro 5+ EEC Certificate

2. With 125cc EFI system

3. Very good price with high quality

4. OEM logo and color available

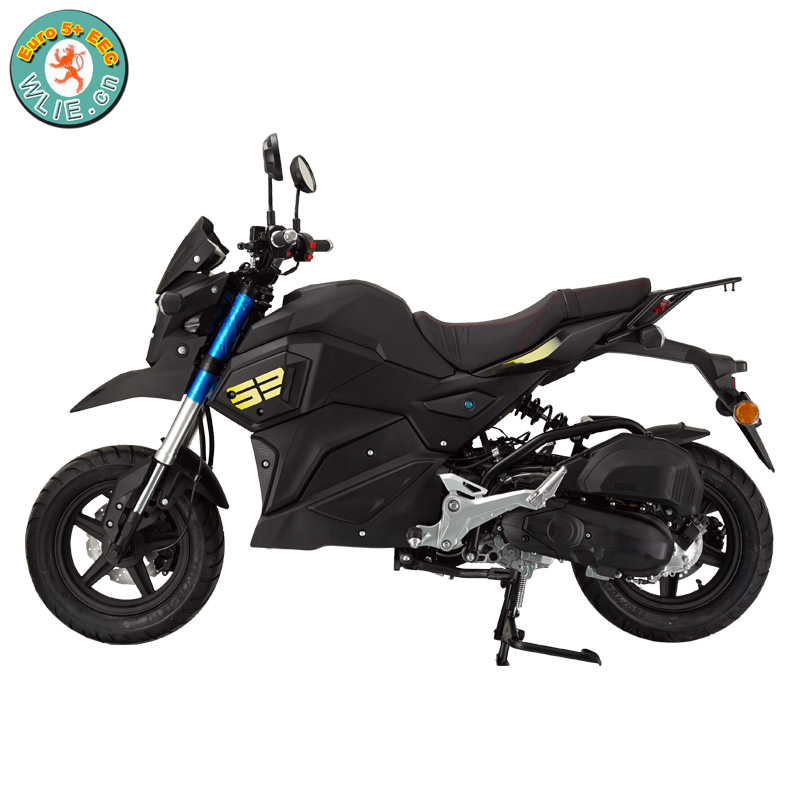

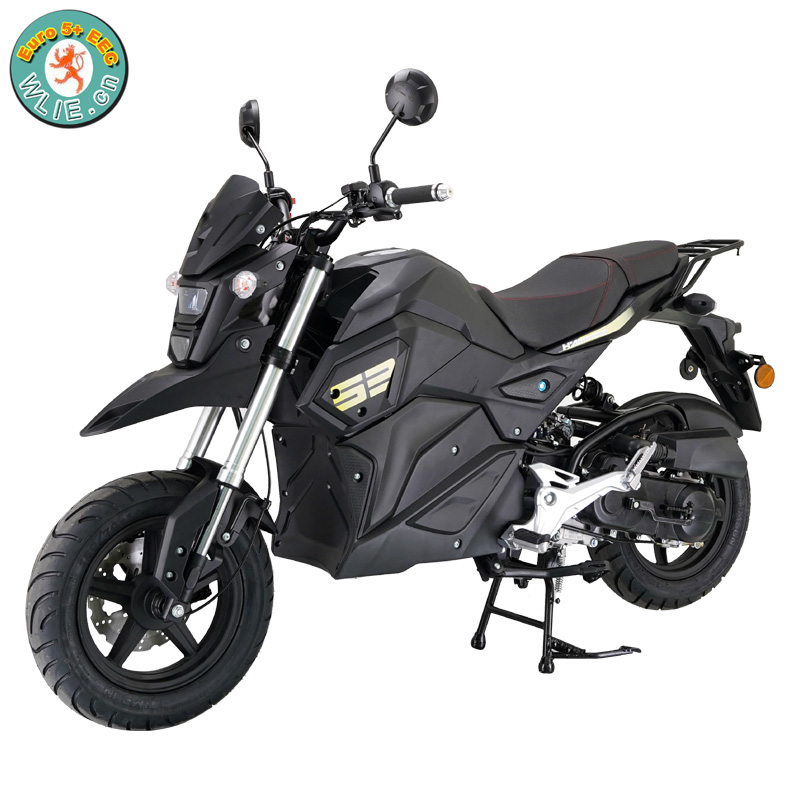

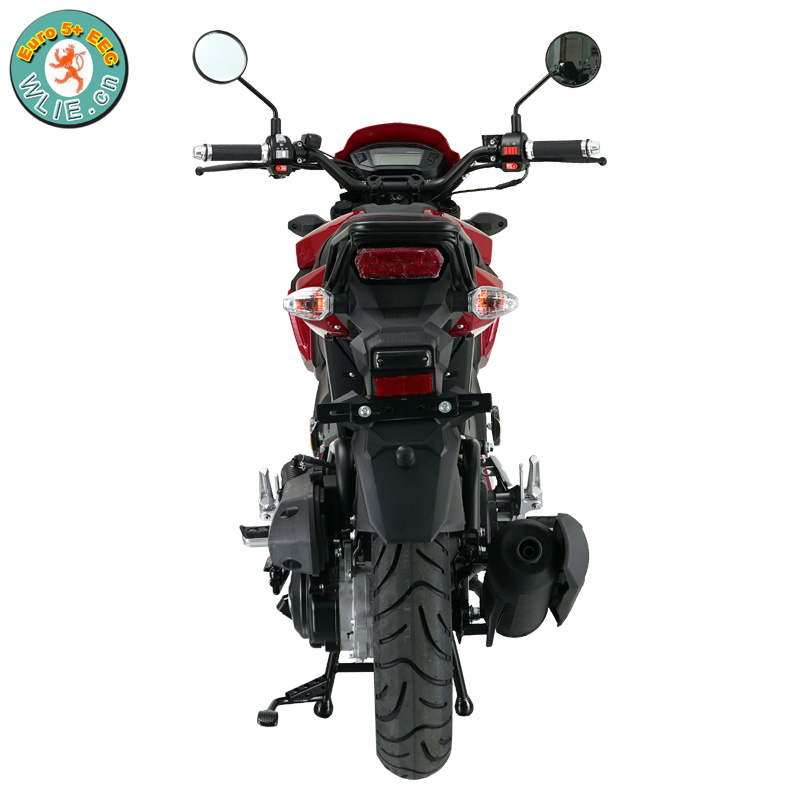

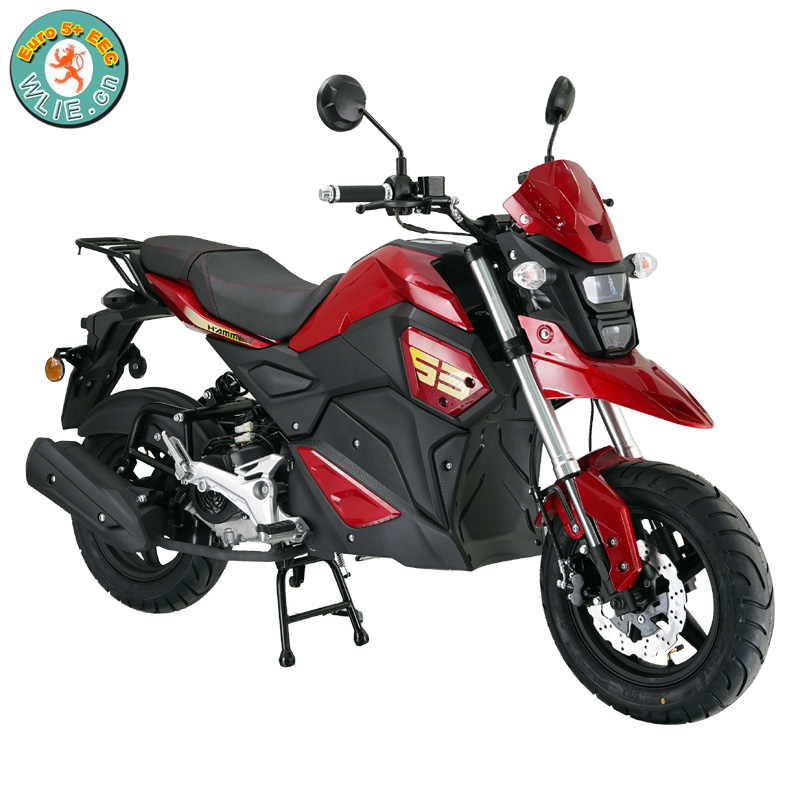

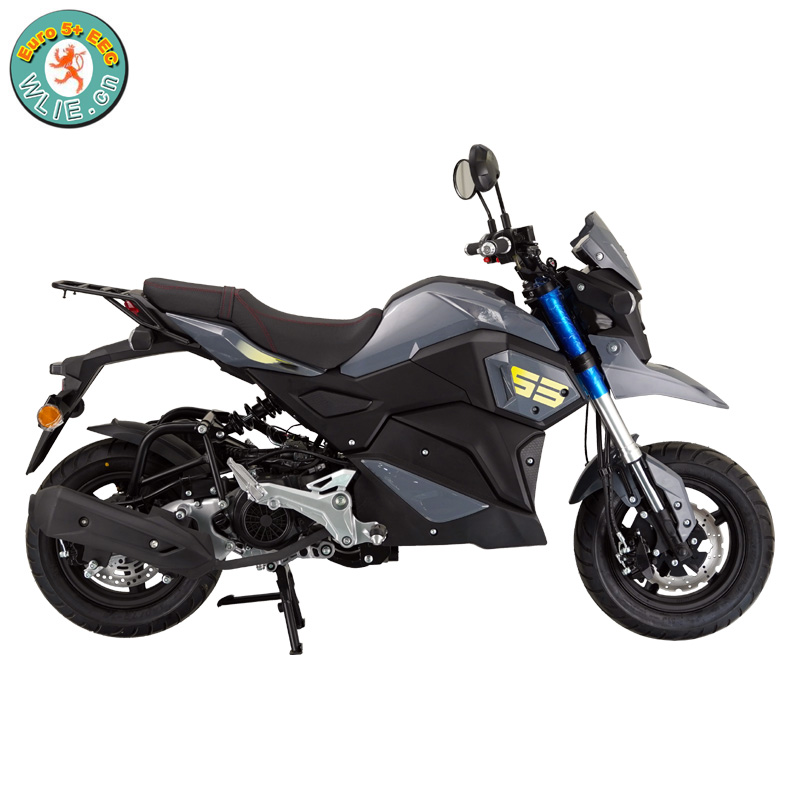

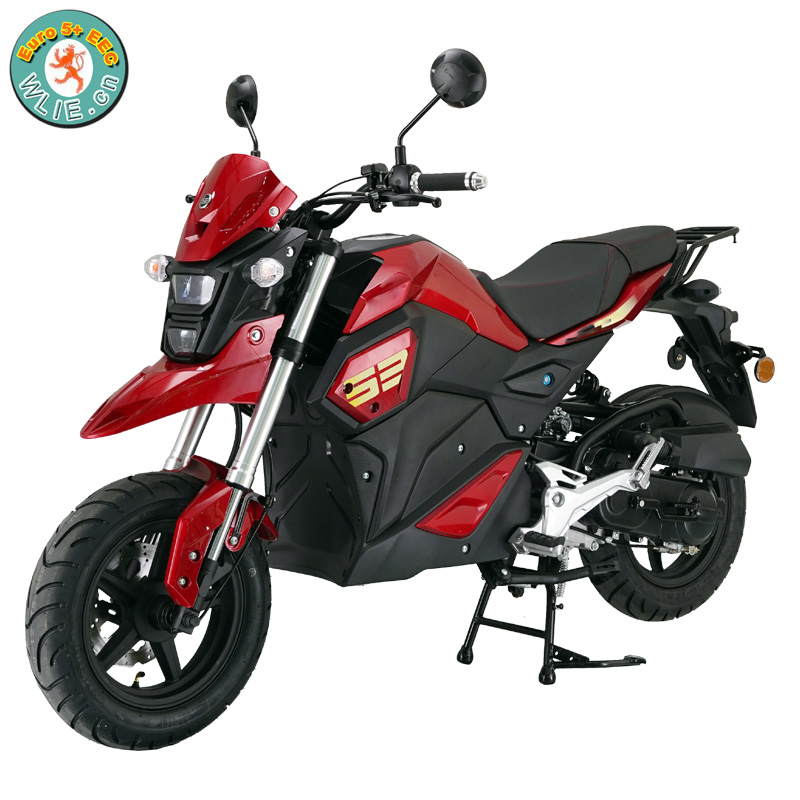

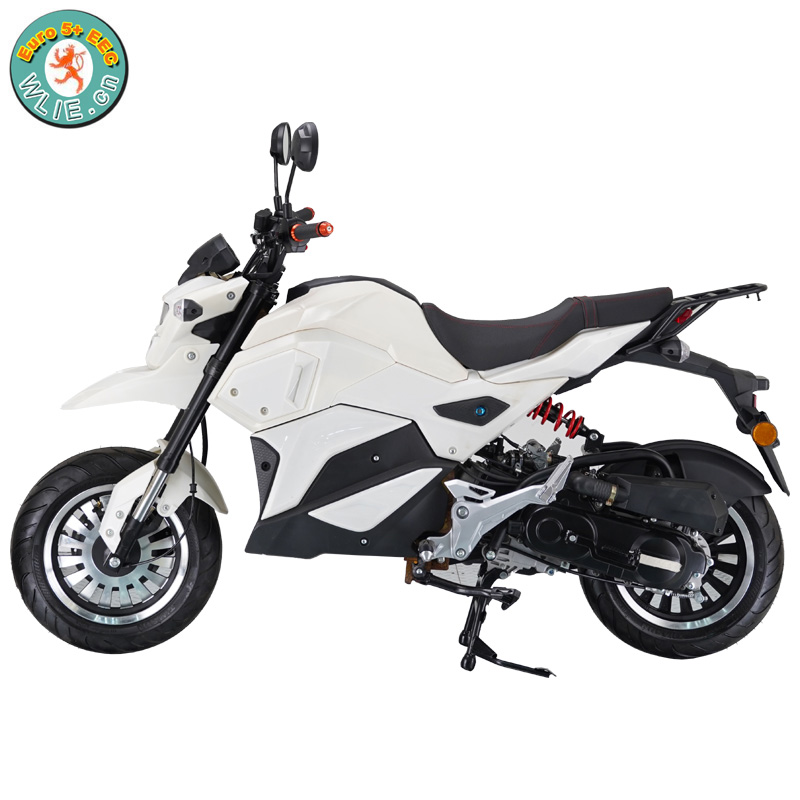

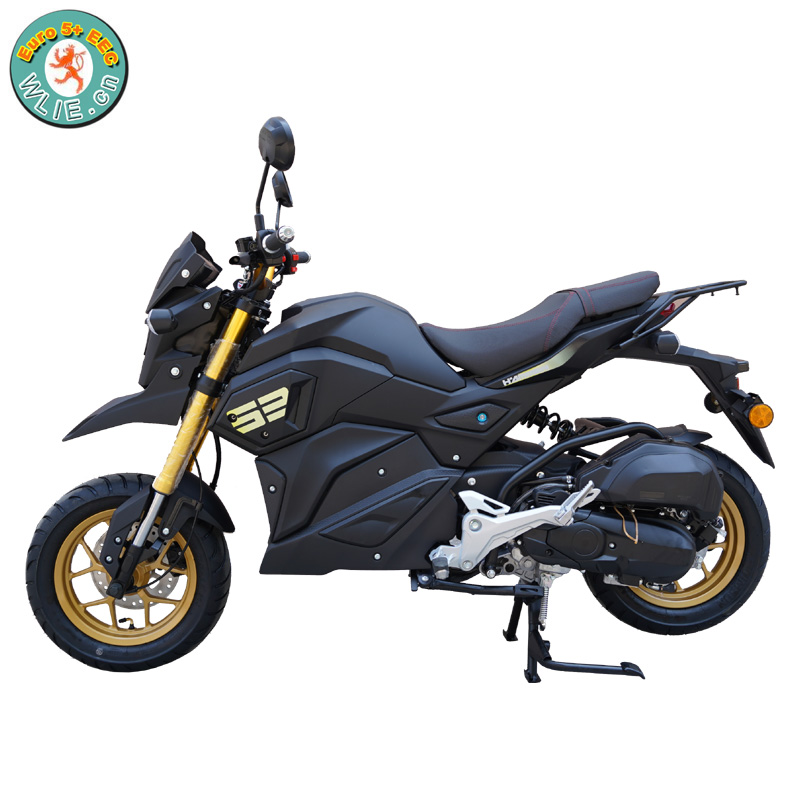

Multi-angle pictures ofthe product

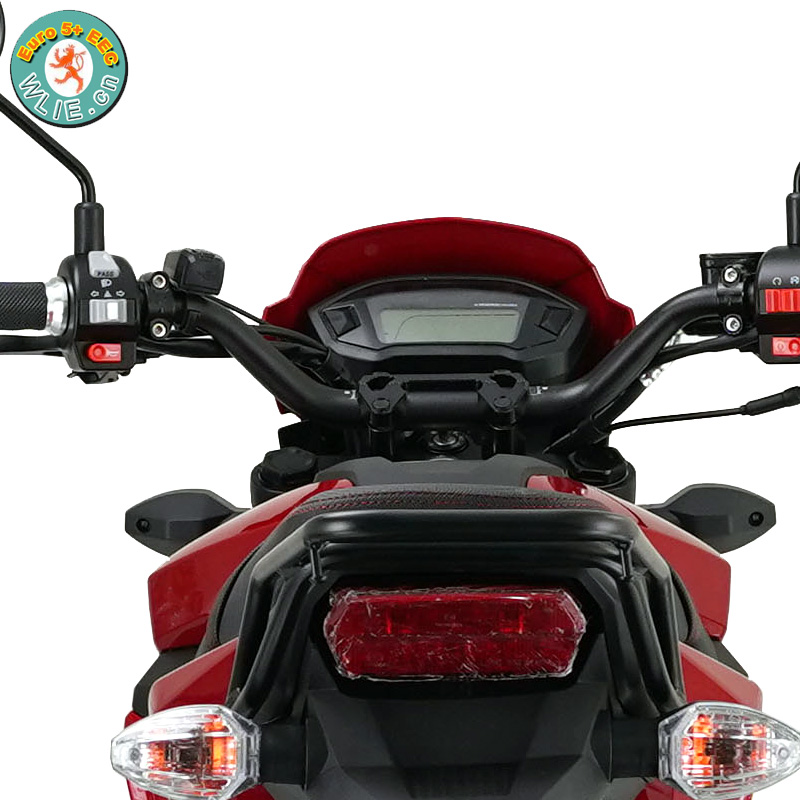

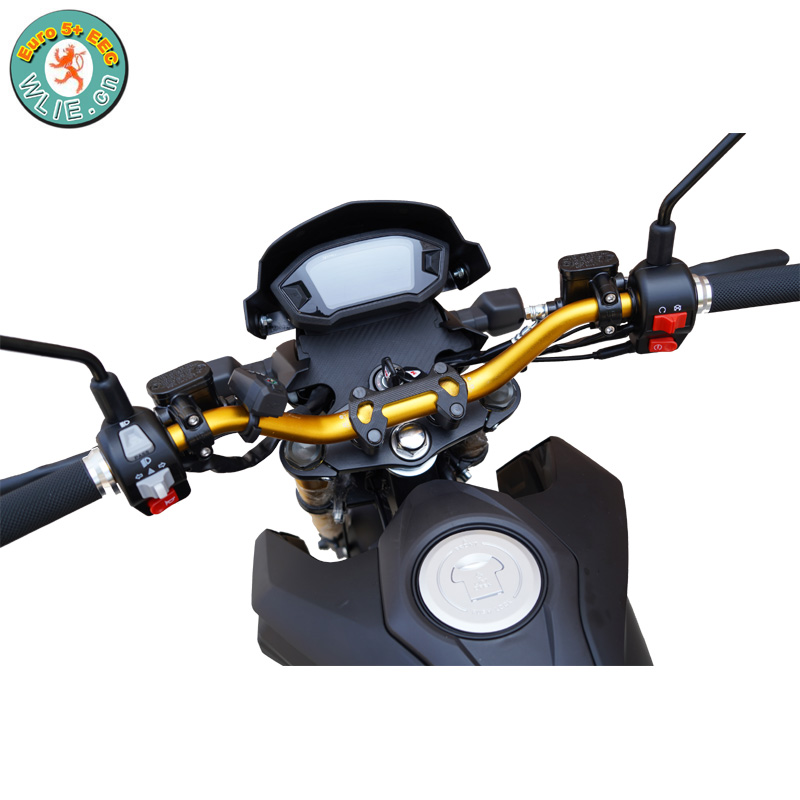

Detail photos of the product

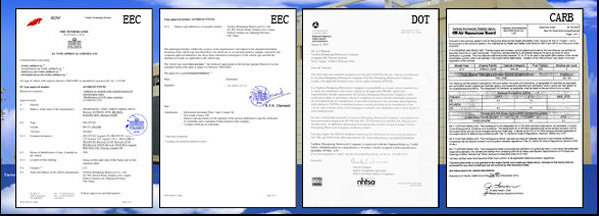

Product certificate
