| ATV320-EC (4X4) Inquiry |
Specifications
T3B Certificate
| Model | ATV 320-EC (4x4) |
| Tyre Size | 24×8-10/24×10-10 |
| Hub | Steel |
| Front suspension | Double swing-arm |
| Rear suspension | Double swing-arm |
| Dimention(LxWxH)mm | 2050×1100×1260 |
| Wheel Base(mm) | 1250 |
| Seat Height(mm) | 800 |
| Mini ground(mm) | 220 |
| Net Weight(kg) | 305 |
| Engine | AC320 |
| Engine Type | Single-cylinder,Water cooling,CVT(4×4) |
| Displacement(cc) | 287.2 |
| MaxPower | 16KW/7000r/min |
| Max Torque | 27N.m/5000r/min |
| Brake(F/R) | Disc/Disc |
| Max Speed(km/h) | 80 |
| Max Load Capcity(kg) | 180 |
| Fuel Consumption(L/100km) | ≤3.4 |
| Transmission style | Shaft(4×4) |
| Optional configuration | 12Inch Alloy wheel |
| Protective rod | |
| T3B certificate | |
| Front Winch | |
| Loading Quantity | 20GP':12 units |
| 40HQ':36 units |
Selling Points of the product
1. Certificate: T3B approved
2. Engine: 320cc, 4X4
3. Gear: CVT and reverse gear, Shaft driver

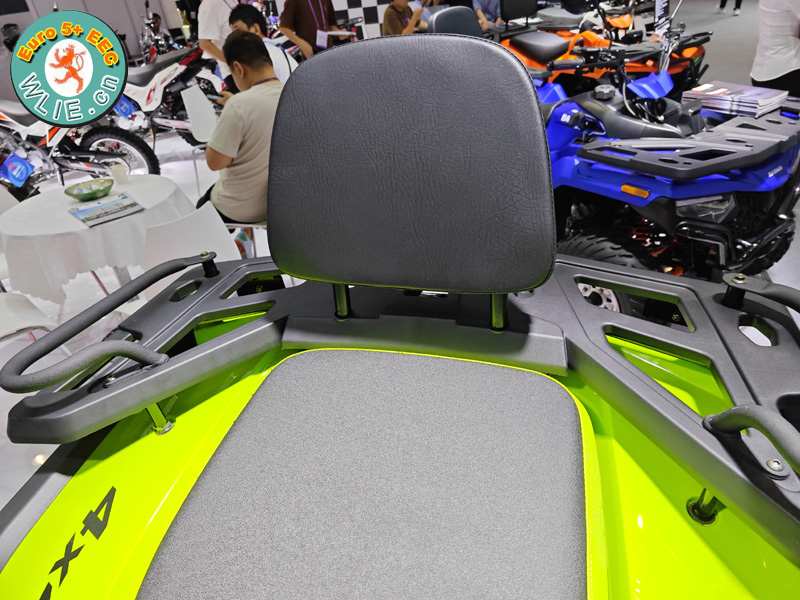

4. Seat: a new long seat for 2person (comfortable & humanized)
5. Packaging: 7 layersshipping carton with strong iron frame
6. Colors painting samefinishing as car's, painted by our own paint-workshop, fully controlled quality.

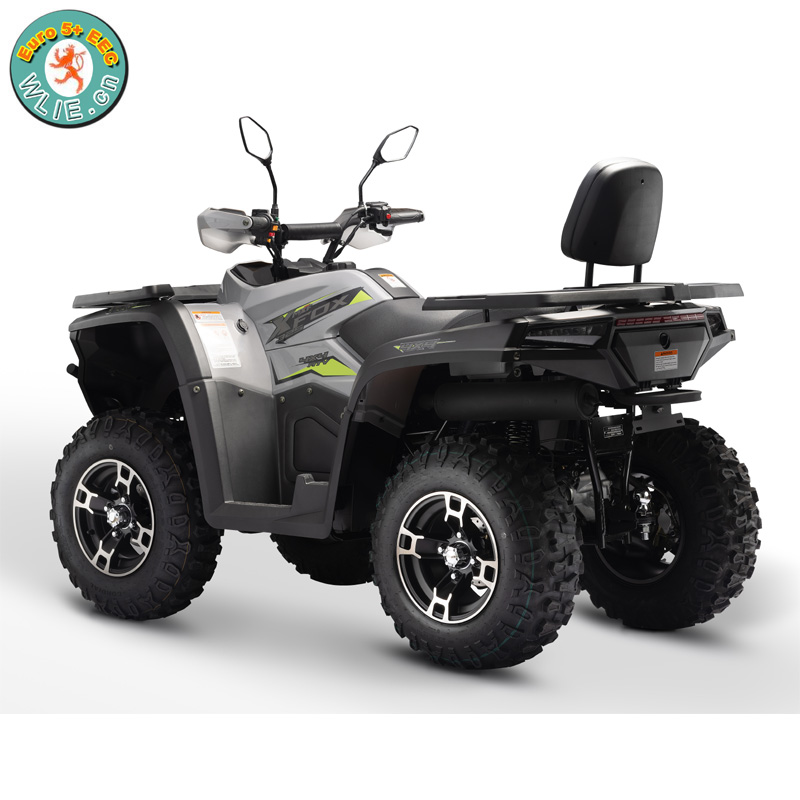

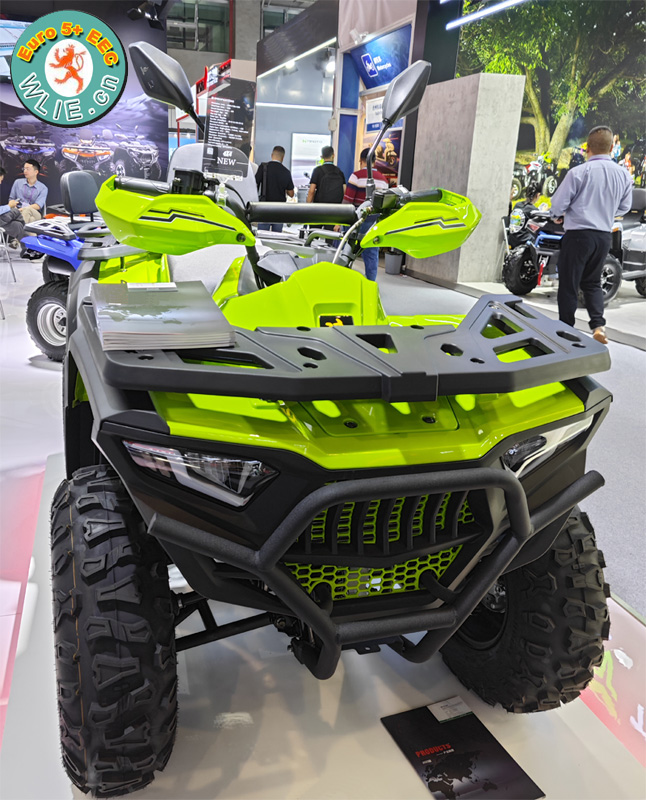

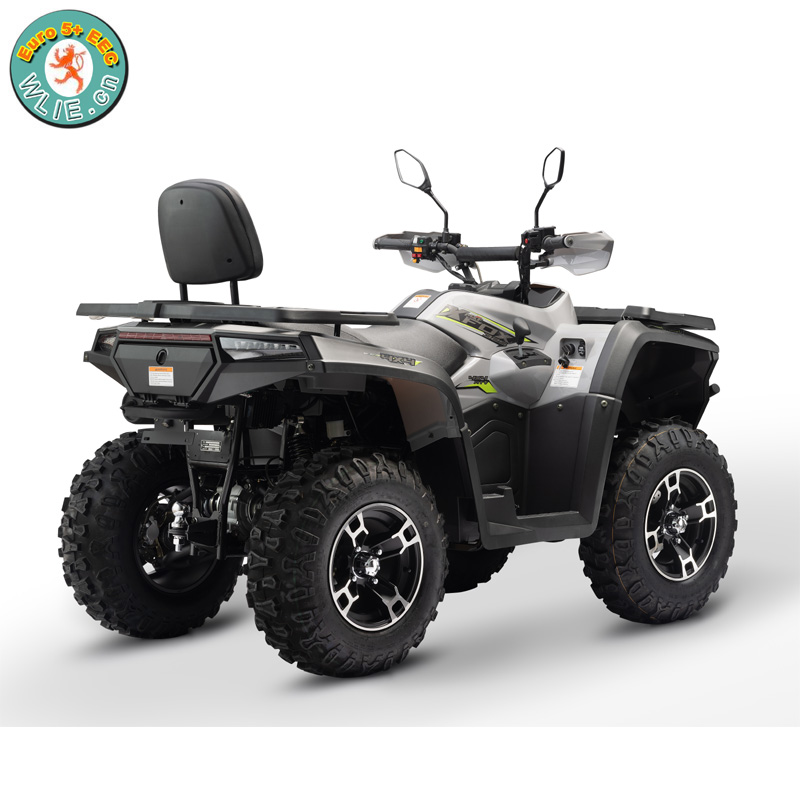

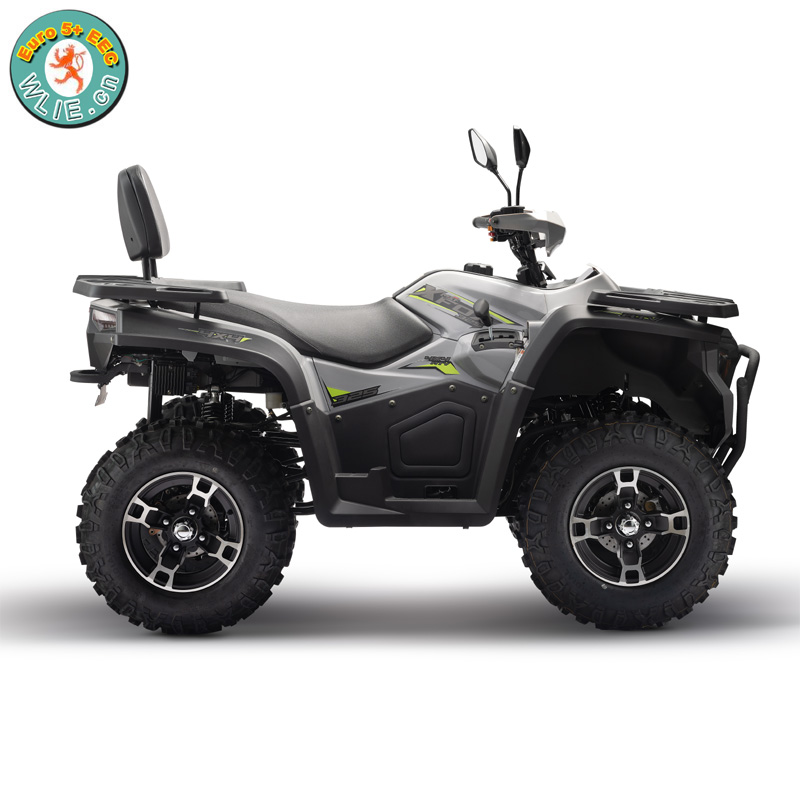

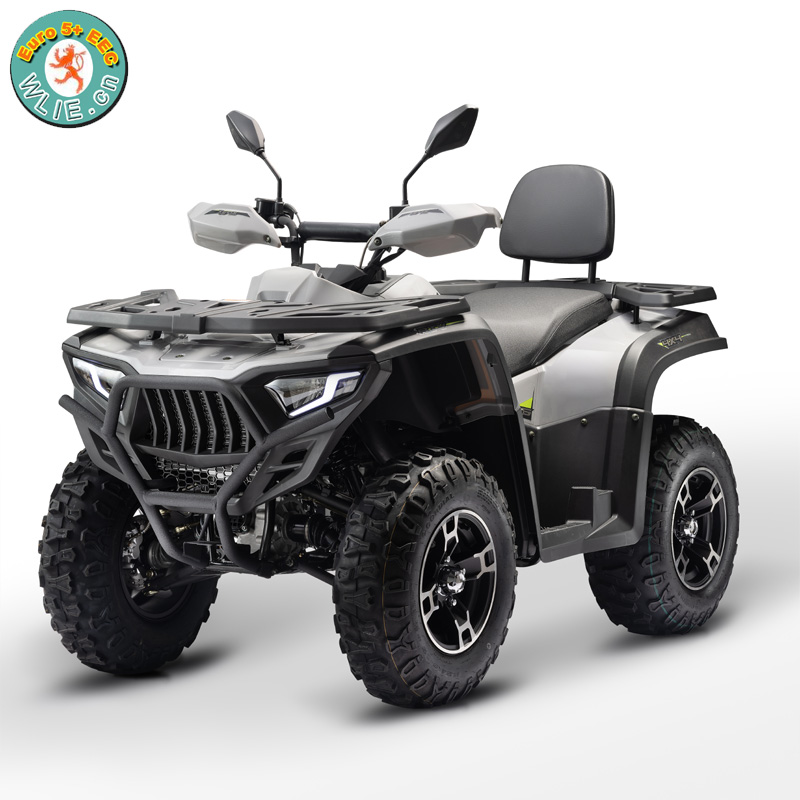

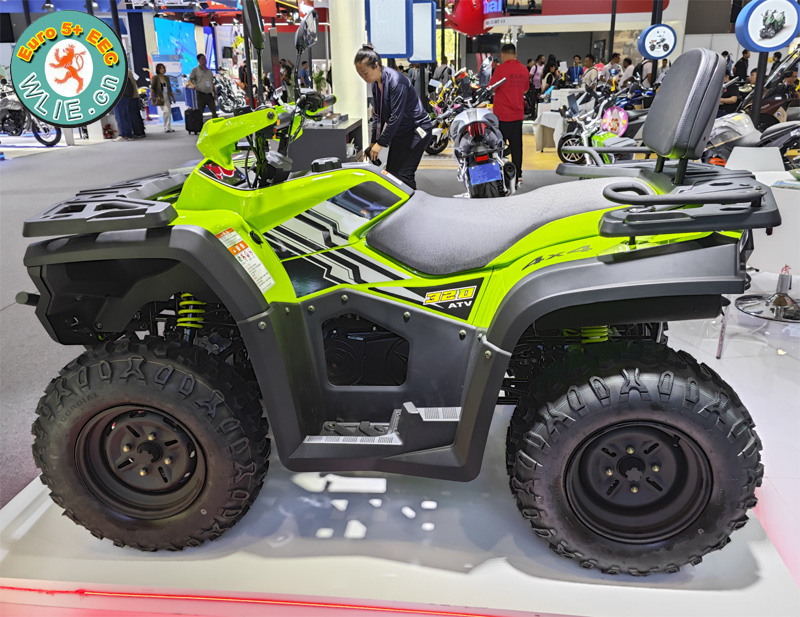

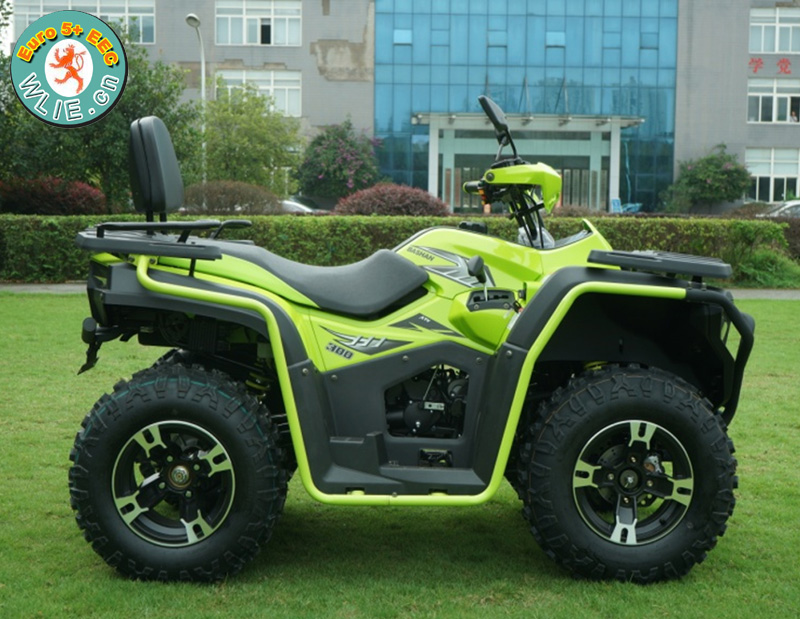

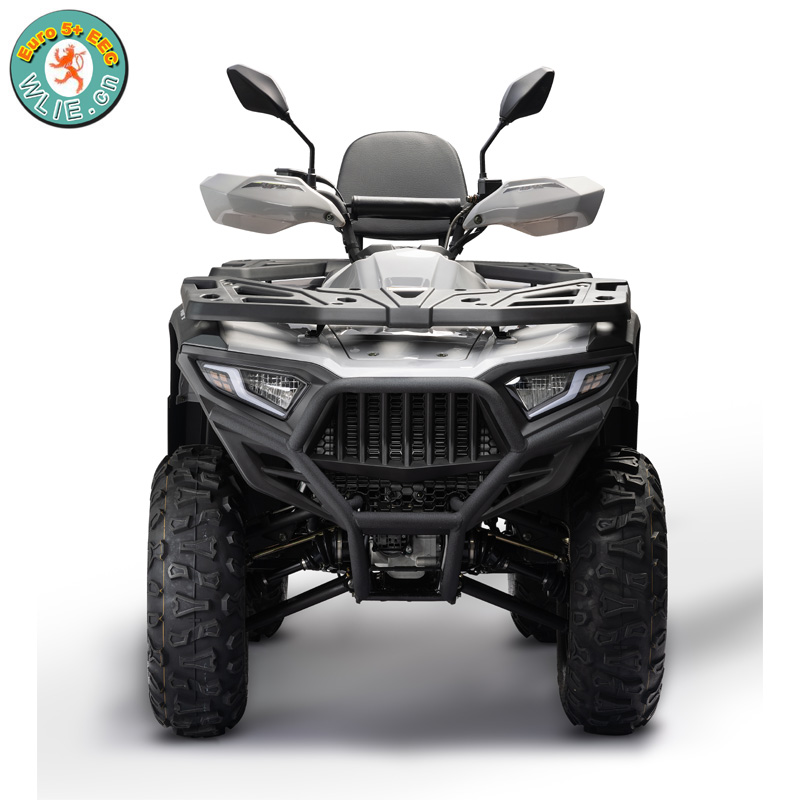

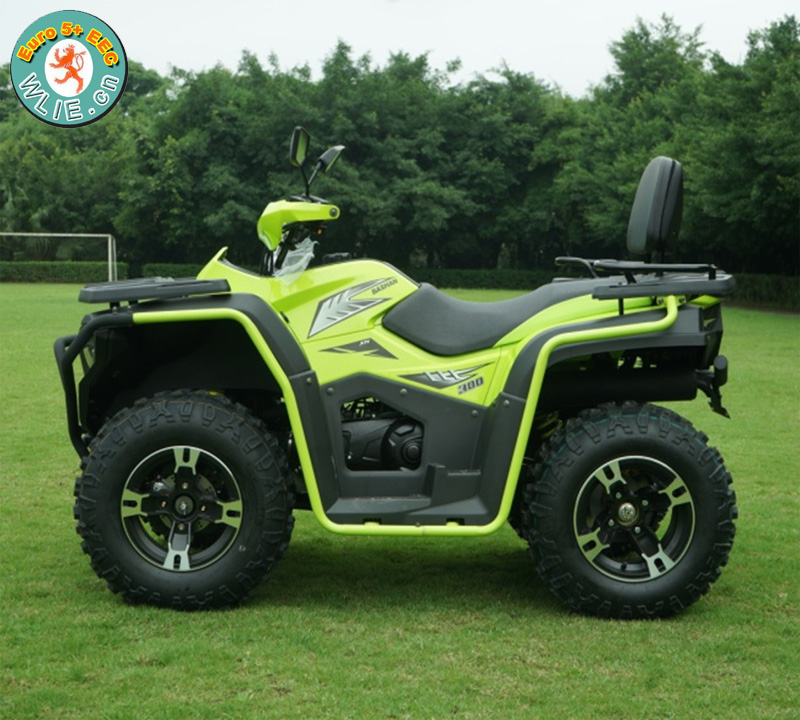

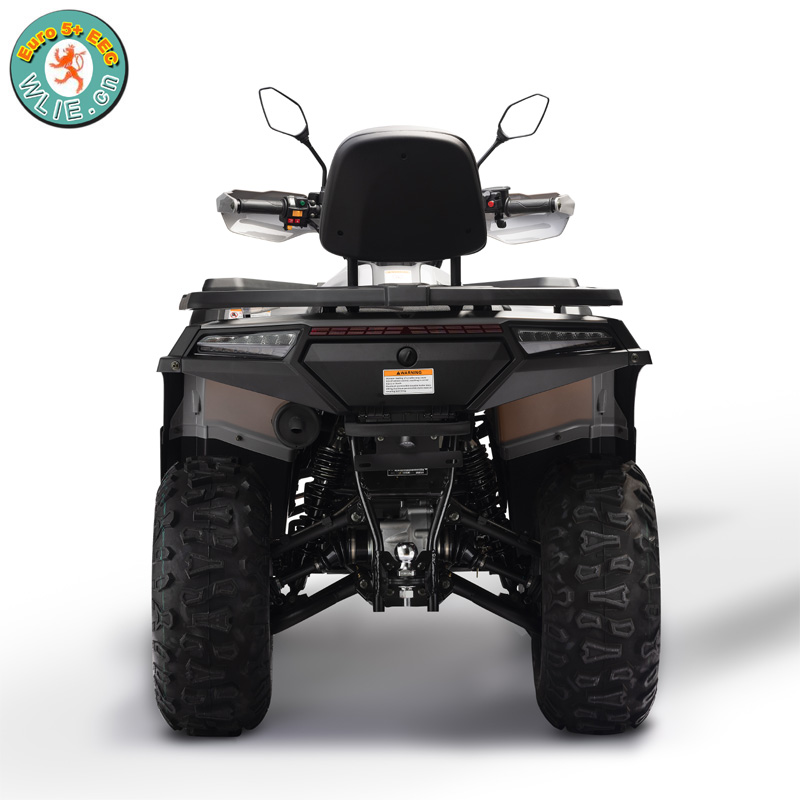

Multi-angle pictures of the product
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

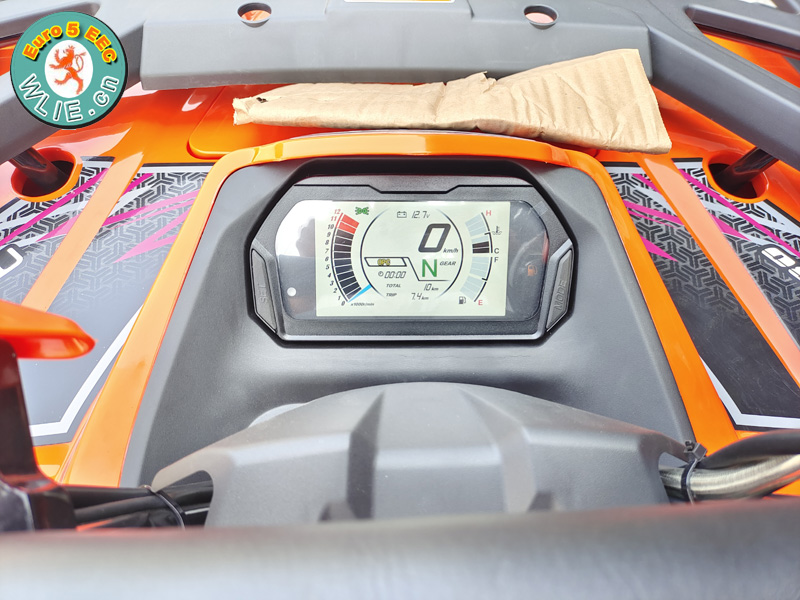

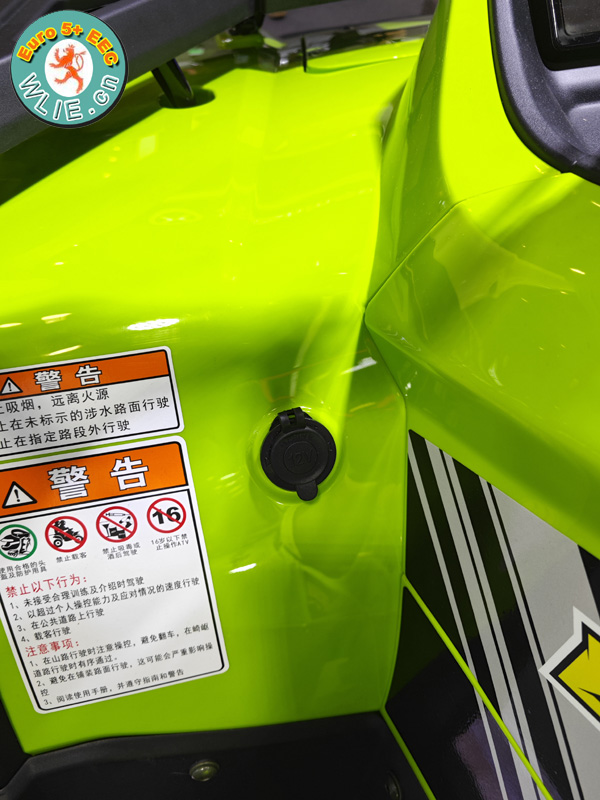

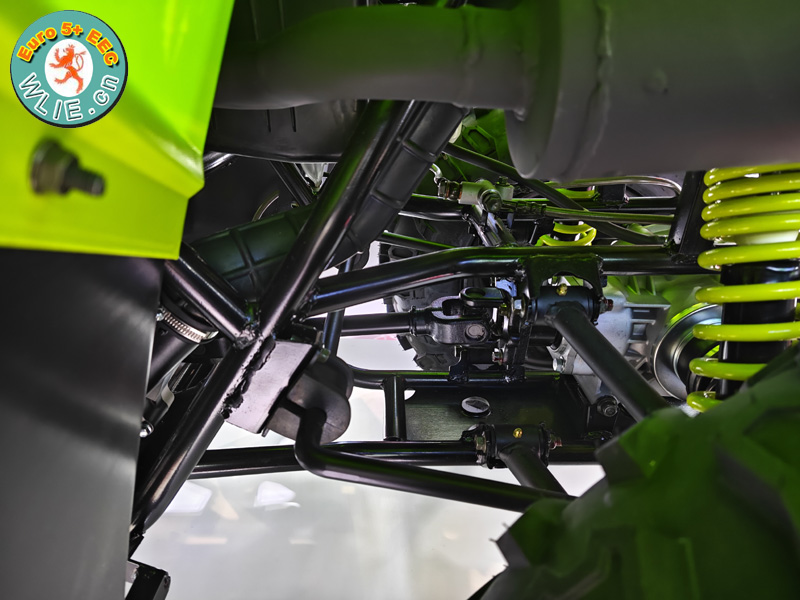

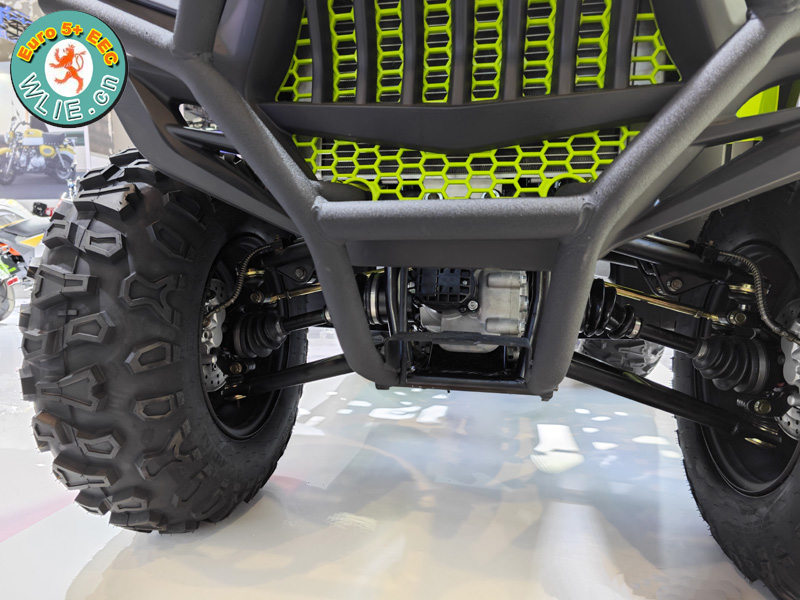

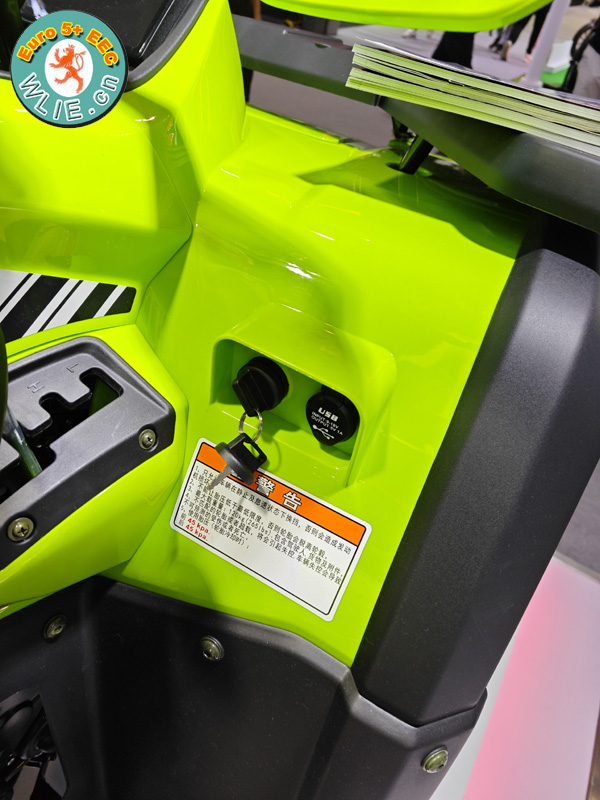

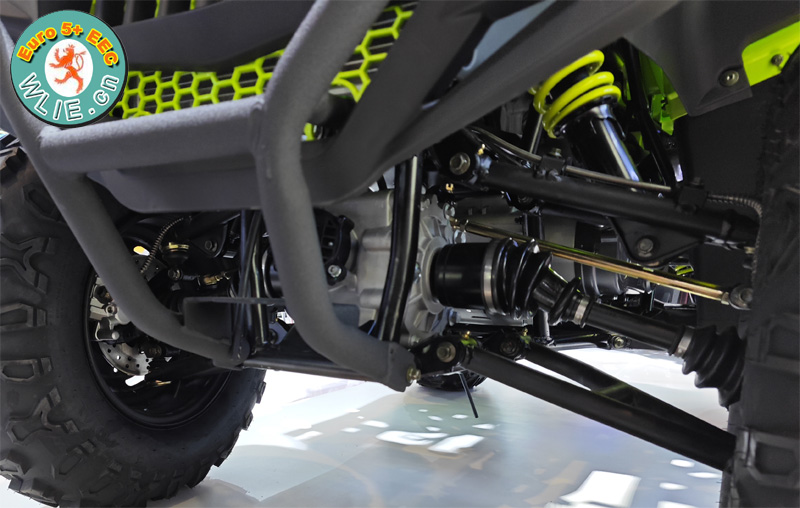

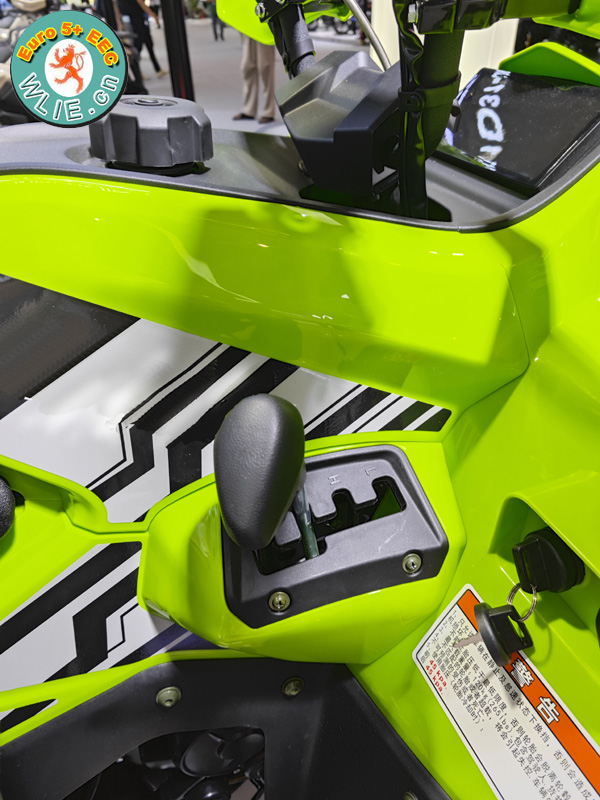

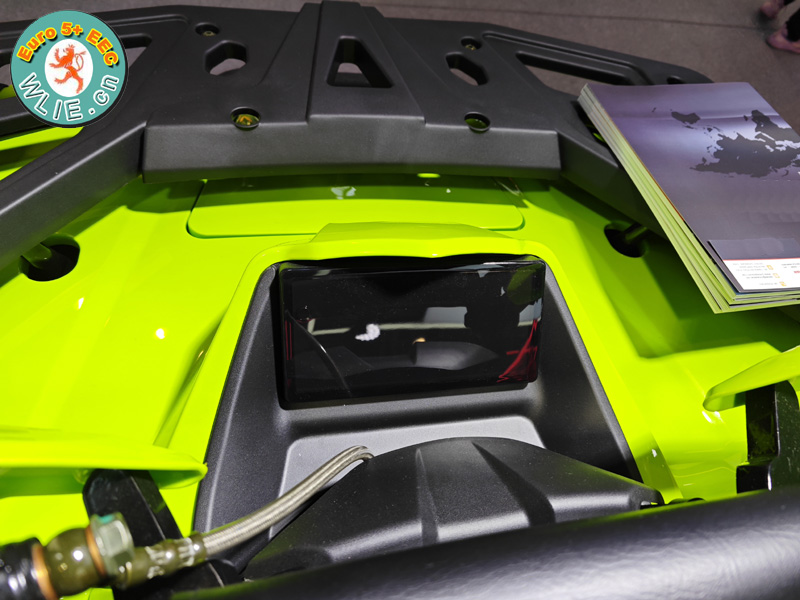

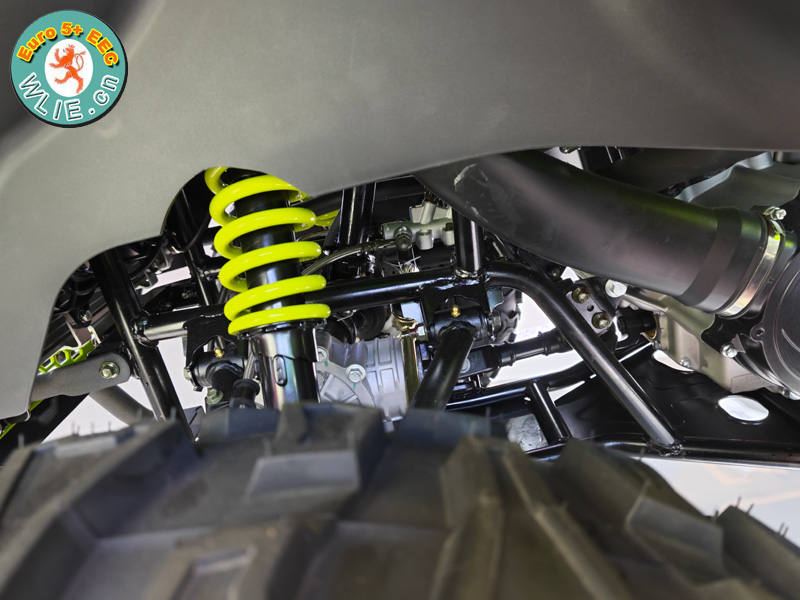

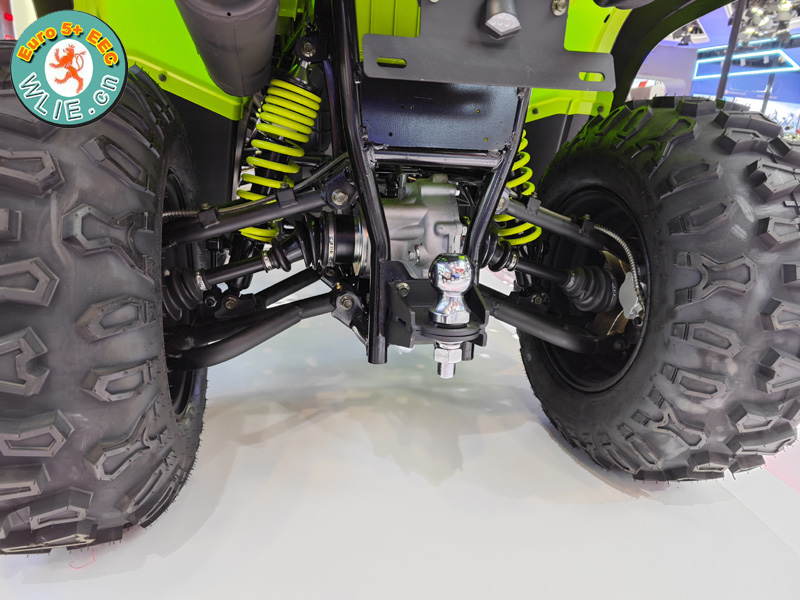

Detail photos of the product
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Product certificate
Euro 5 EEC Homologation
